Description

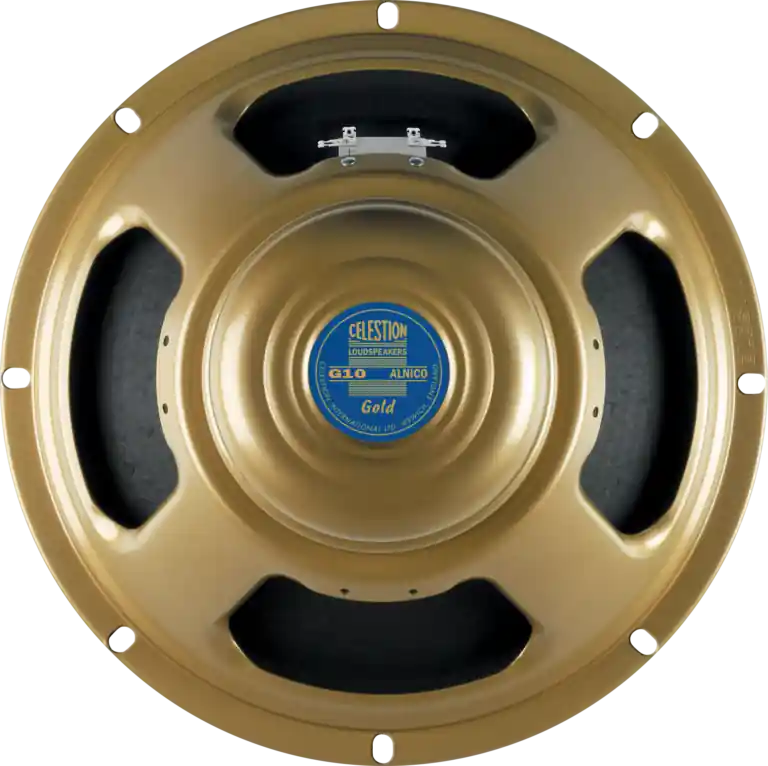

Following the great reviews Celestion received for the Gold 12″, they realised there was also a need for a speaker that conveyed the Alnico mellowness of the original Blue, with the speed and response of a 10″ driver. The G10 Gold is the ultimate 10″ guitar speaker, blending unmistakable Alnico class with a rich low-end, creamy mid-range and vintage chiming top-end.
Springy, warm, revealing and highly expressive, it can be used singly or in pairs to add a classy sheen to any amp, or in a 4×10 configuration for higher volume depth, warmth and shimmer, with less of the boom associated with 4×12 cabinets.

Specifications

Nominal Diameter: 254 mm (10″)
Power Rating: 40W
Rated Impedance: 8
Sensitivity: 98dB
Chassis Type: Pressed steel
Magnet Type: Alnico
Voice Coil Diameter: 1.75″ (44.5 mm)
Voice Coil Material: Round copper
Frequency Range: 80-6000Hz
Resonance Frequency, Fs: 80Hz
DC Resistance, Re: 6.66 and 13.56

Mounting Information

Cut-out Diameter: 229 mm (9″)
Diameter: 256 mm (10.1″)
Magnet Structure Diameter: 119 mm (4.7″)
Mounting Hole Dimensions: 6.5 mm (0.25″)
Mounting Hole PCD: 244 mm (9.6″)
Number of Mounting Holes: 8
Chassis Depth (inc gasket): 73 mm (2.87″)
Magnet Depth: 62 mm (2.43″)
Overall Depth: 135 mm (5.3″)
Unit Weight: 2.7 kg (6.0 lbs)
