Description

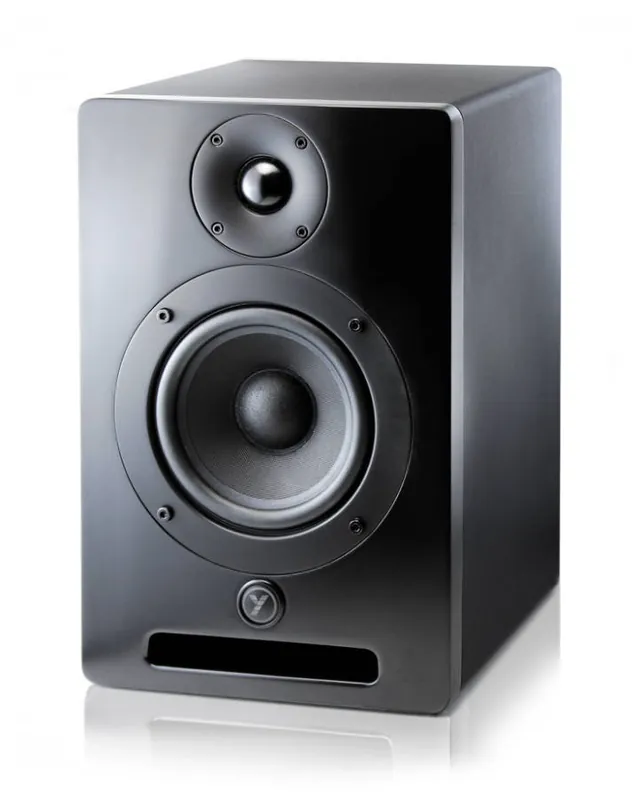

The Yorkville YSM5 is the most compact studio monitor in the YSM series, making it perfect for small listening spaces and desktop studios. Unmatched clarity, precise reproduction and surprisingly punchy bottom end response for a monitor in this class, the YSM5 uses a solid -inch MDF cabinet and baffle to reduce rumble and cabinet self-interference. The front facing port design solves the issue of bass coupling with back walls and corners in small environments which can generate false low-frequency information in your mix.
Compatible with virtually any source, Yorkville YSM5 has a widely variable input trim control making it compatible with any source including direct connection to a soundcard, or connection to a professional console control room output. Four position high frequency trim control that allows user to adjust EQ to compensate for speaker placement in less than perfect listening spaces.
Contoured MDF baffles, custom designed soft dome tweeters and high quality low frequency woofers used in Yorkville’s YSM Series monitors combine to minimize front face reflections creating improving phase response, providing a wider ‘sweet spot’ in the listening position. Front facing port design solves the issue of bass coupling with back walls and corners in small environments which can generate false low-frequency information in your mix.
Compatible with virtually any source, Yorkville YSM Series Studio Monitors have a widely variable input trim control for the balanced XLR / 1/4-inch combi-jack input.
Rock-solid 3/4-inch MDF cabinet construction with heavy internal bracing and ample internal dampening material reduces unwanted low frequency rumble ensures Yorkville YSM Series cabinets reproduce source material with near pinpoint accuracy and detail.
*Sold individually.
Features:
Reproduces source material with near pinpoint accuracy and detail
Contoured MDF baffle engineered to minimize front face reflections
Front facing port design eliminates bass coupling with back walls and corners in imperfect listening environments
Improved phase response provides a wider ‘sweet spot’ in the listening position
Strategic bracing and ample internal dampening eliminates unwanted low frequency rumble
Biamplified Power Module (40 watts woofer / 15 watts tweeter)
Custom designed soft dome tweeter
High quality low frequency 5-inch woofer
Rock-solid 3/4-inch MDF cabinet construction
XLR and -inch TRS balanced inputs
4-position high frequency trim control to optimize response for recording space
Front mounted power switch for added convenience
Specifications:
System Type: 2-Way
Active or Passive: Active
Program Power (Watts): 55
Biampable: Self Powered
Biamp Operation Only: Yes
Max SPL (dB): 105
Frequency Response (Hz +/- 3db): 52-20,000
Crossover Frequency (Hz): 3000
HF Driver(s): 1 inch Neodymium soft-dome tweeter
HF Program Power (Watts): 15
LF Driver(s): 5 inch Composite woofer
LF Program Power (Watts): 40
LF Protection: Thermal / Current Limit
HF Distortion: 0.0003
LF Distortion: 0.0002
Inputs: 1 Combi-Jack
Mixer Controls: HF Trim (-2,-1, 0,+1dB) 4-position preset
Level Controls: Input Gain
Enclosure Materials: MDF
Baffle Material: MDF
Port(s): Yes – Front
Dimensions (DWH xbackW, inches): 9.5 x 7.5 x11.5
Dimensions (DWH xbackW, cm): 24 x 19 x 29
Weight (lbs/kg): 15 / 6.8
