Description

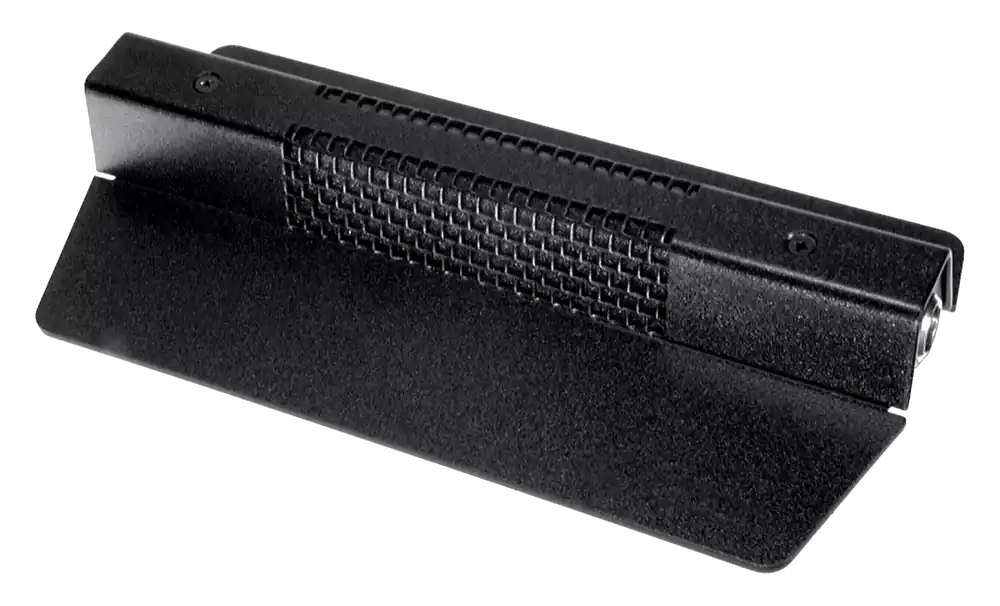

The PCC160 is a professional boundary layer microphone and an industry standard stage floor microphone. It’s capable of withstanding up to 120dB SPL without distortion. A bass-tilt switch allows the user to tailor the low-end response for particular applications.
PCC (Phase Coherent Cardioid) technology uses diaphragms so small that any phase cancellations are above the audible range. This results in a wide, smooth frequency response free of phase interference. The PCC160 uses a supercardioid polar pattern that improves gain before feedback and reduces unwanted room noise from the rear.
Features
Supercardioid polar pattern rejects the pit orchestra and offers an impressive gain before feedback
Phase coherent cardioid design prevents coloration from surface sound reflections
Finely crafted, rugged housing withstand the rigors of the stage
Low profile to be inconspicuously placed on the stage-floor
Industry standard stage-floor microphone
Specifications
Audio frequency bandwidth: 50 – 18000 Hz
Equivalent noise level: 22 dB-A
Sensitivity: 22 mV/Pa
Signal to Noise: 72 dB-A
Recommended load impedance: 2000 Ohms
Dimensions: 170 mm x 80 mm
Height: 20 mm
Design
Finish: black
Audio Output
Type: Switchcraft TA3F
Contacts: 3-pin
Powering Interface
Voltage: 12 to 48 V
