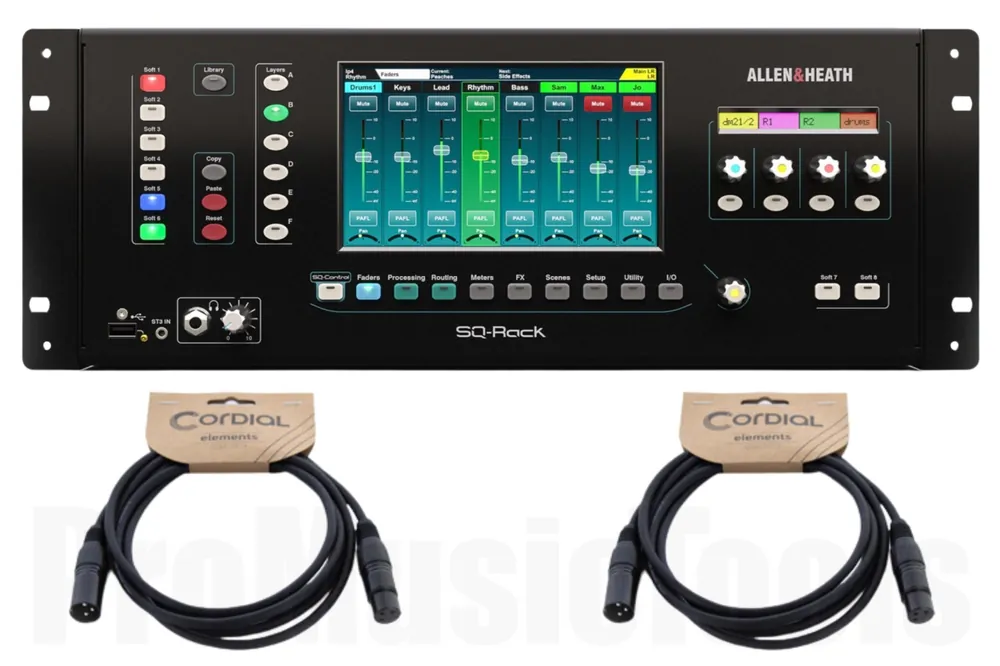

Allen & Heath SQ-Rack48-channel Rackmount Digital Mixer
SQ-Rack is the ultimate tool for audio professionals, delivering Allen & Heaths renowned 96kHz SQ core in a compact, rack-mountable design. Perfectly crafted to meet the demands of live sound and installation environments, SQ-Rack combines power, flexibility, and intuitive control in one versatile solution.
SQ-Rack packs SQs 96kHz XCVI core into a shallow 4U rack-mount form factor with built-in I/O, powerful SLink connectivity, option cards, and multichannel USB. Enjoy hands-on controls and customisable screens, along with remote access via SQ apps for ultimate control of your audio.
- 48 channel mixer
- 96 kHz FPGA core signal processing: latency 0.7 ms
- 7 multi-touch screen
- 12 stereo mixes – perfect for in-ear monitoring setups
- 3 Matrix
- 8 FX Engine
- Hands Control: 8 soft keys
- 4 soft rotaries
- SQ-Rack apps: SQ-MixPad, SQ4You, SQ-Control
- 128 x 128 SLink connection for remote audio networking
- 64 x 64 channel I/O connection for audio networking
- 32 x 32 channel USB audio interface
- SQ-Drive for direct recording to USB stick
- 17 mono XLR inputs: 1 talkback
- 2x 6.3 mm TRS jack stereo inputs
- 3.5 mm stereo input
- 1 XLR talkback mic input
- 6.3 mm footswitch
- 12 XLR outputs
- 2x 6.3 mm TRS outputs
- AES XLR output
- 6.3 mm headphone output
- I/O port for optional expansion cards: Dante/Madi/Waves/SLink
- Multi Position 19 Rack Ears
Bundle Set incl. 2x Cordial EM 2 FM
