Description

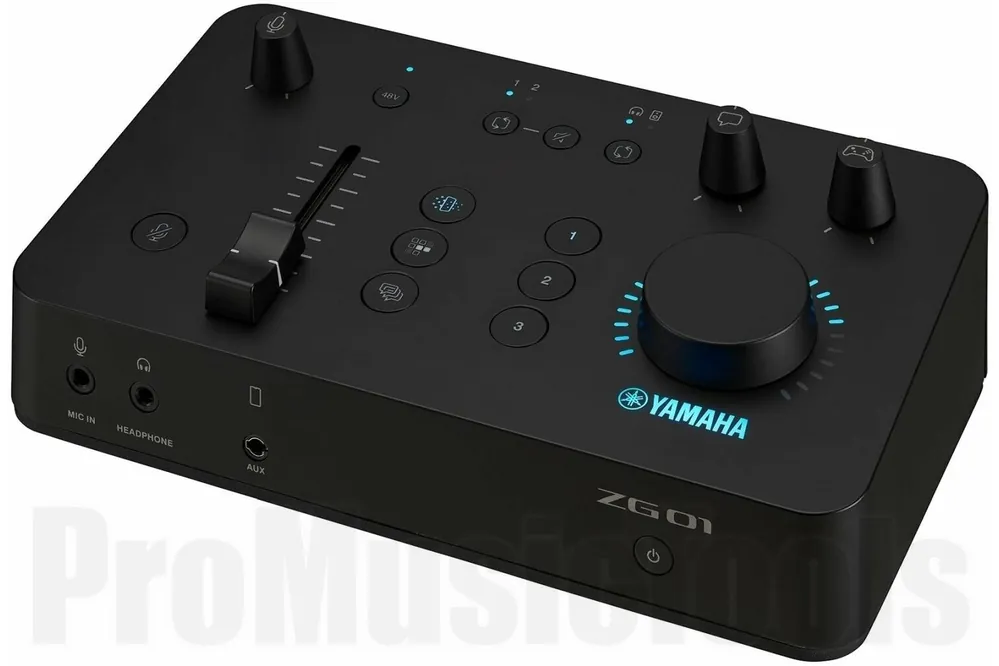

Yamaha ZG01

Game-Streaming Audiomixer

Main Features:

• 24 bit / 48 kHz
• Dedicated ZG driver (allocation of single signals to multiple client applications)
• DSP effects / ZG sound processing (ZG Surround, Focus Mode / EQ, 3D Chat Space, Voice changer, Transceiver/Radio Voice effect)
• 2x 3 buttons for voice chat effects and game effects
• Mute button
• Fader and volume control
• +48 V phantom power
• 1 microphone input: XLR/jack 6.3 mm combo
• 1 headset microphone input: 3.5 mm mini jack
• 1 speaker output: 3.5 mm mini-jack stereo
• 1 headphone output: 3.5 mm mini stereo jack
• 1x 4-pin mini TRRS input / output for smartphones (iOS and Android support)
• 3 HDMI connectors: 2x input / 1x output, 2-channel audio output 24 bit / 48 kHz fixed, video signal pass-through
• 2 USB-C ports (1x PC, 1x optional external power supply 5V DC 1.5A – power supply not included)
• Dimensions (W x H x D): 195 x 47.5 x 110 mm
• Weight: 0.8 kg
