Description

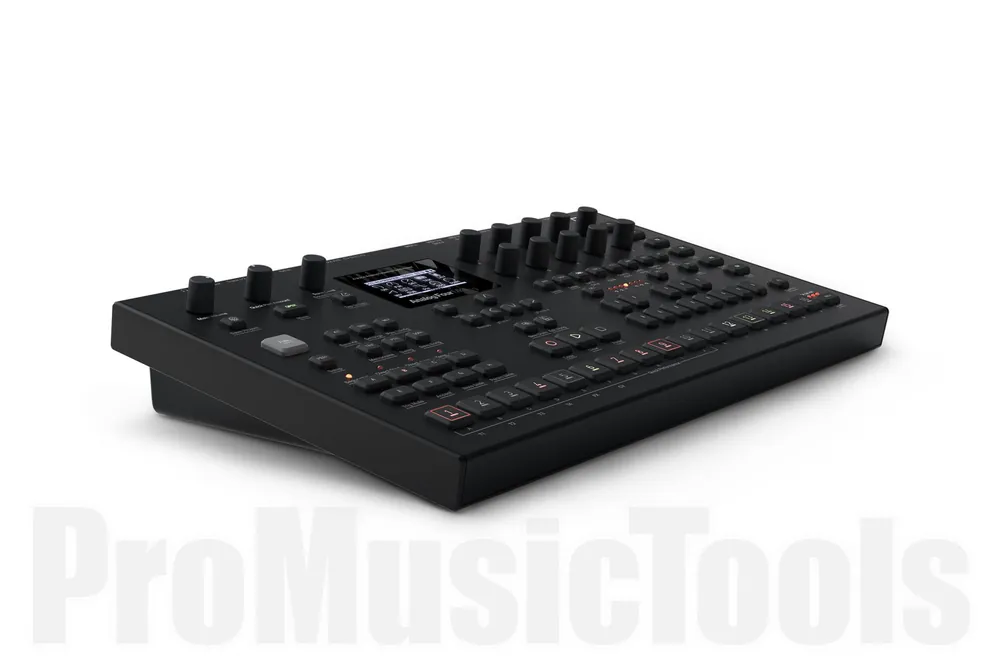

Elektron Analog Four MKII

• Synth voice features (×4)
• Fully analog signal path
• 2 × analog oscillators
• Variable waveshape on all waveforms
• Oscillator AM and Sync modes
• 2 × sub-oscillators
• 1 × noise generator
• 1 × 4-pole analog lowpass ladder filter
• 1 × 2-pole analog multi-mode filter
• 1 × analog overdrive circuit
• Filter feedback
• 2 × assignable LFOs
• 1 × dedicated vibrato LFO
• 2 × dedicated waveshape LFOs
• 1 × amp envelope
• 2 × assignable envelopes
• 2 × dedicated LFO fade envelopes
• 1 × dedicated noise fade envelope
• 1 × dedicated vibrato envelope
• 1 × dedicated autobend envelope
• 3 × individual effect sends
• Polyphony
• Up to 4 notes of polyphony
• Up to 4 part multitimbrality
• Up to 4 note unison playback
• Storage
• 128 Projects
• 4096 Sounds (+Drive Sound Library)
• 128 Sounds per Project (Project Sound Pool)
• 128 Kits per Project
• 128 Patterns per Project
• 16 Songs per Project
• Sequencer
• 4 synth tracks
• 1 FX track
• 1 CV/Gate track
• Sequencer MIDI Out
• Up to 64 steps per pattern
• Individual length per track
• Individual scale per track
• 6 × arpeggiators
• Parameter locks
• Step Recording mode
• Trig preview
• Trig probability
• Instant Pattern, Kit and Sound reload
• Live friendly Performance mode
• Swing, slide, accent
• Track transpose
• Micro timing
• Sound-per-step change
• Full real-time control
• Send effects
• Wideshift Chorus
• Saturator Delay
• Supervoid Reverb
• Hardware
• 128 × 64 pixel OLED screen
• MIDI In/Out/Thru with DIN Sync out
• 2 × 1/4 impedance balanced main audio out jacks
• 4 × 1/4 separate stereo voice output jacks
• 2 × 1/4 audio in jacks
• 1 × 1/4 stereo headphone jack
• 4 × 1/4 CV/Gate outputs
• 2 × 1/4 CV/Expression inputs
• 48 kHz, 24-bit D/A and A/D converters
• Flash-EEPROM upgradable OS
• Electrically isolated USB 2.0 Hi-Speed port
• Balanced audio outputs
• Headphones out level: +19 dBu (55 )
• Main outputs level: +19 dBu
• Output impedance: 440unbalanced
• Unbalanced audio inputs
• Input level: +19 dBu maximum
• Audio input impedance: 9 k
• CV/Expression inputs
• Input voltage on tip: -5 V+5 V. Supplies +5 V on ring
• Accepts CV, Expression pedals
• CV outputs
• Voltage range: -10 V+10 V.
• Digital S/N ratio: 102 dBFS (2020.000 Hz)
• Electrical specifications
• Unit power consumption: 15 W typical, 20 W maximum.
• Recommended power supply: 12 V DC, 2 A
• Physical specifications
• Aluminum enclosure
• Dimensions: W385 × D225 × H82 mm (15.2 × 8.85 × 3.3) including knobs, jacks and feet
• Weight: approximately 2.4 kg (5.3 lbs)
• Miscellaneous
• Overbridge enabled
• Class Compliant USB Audio
• 3 year Elektron warranty
• Included in the box
• Power Supply PSU-3b
• Elektron USB cable
• Quick Guide
