Description

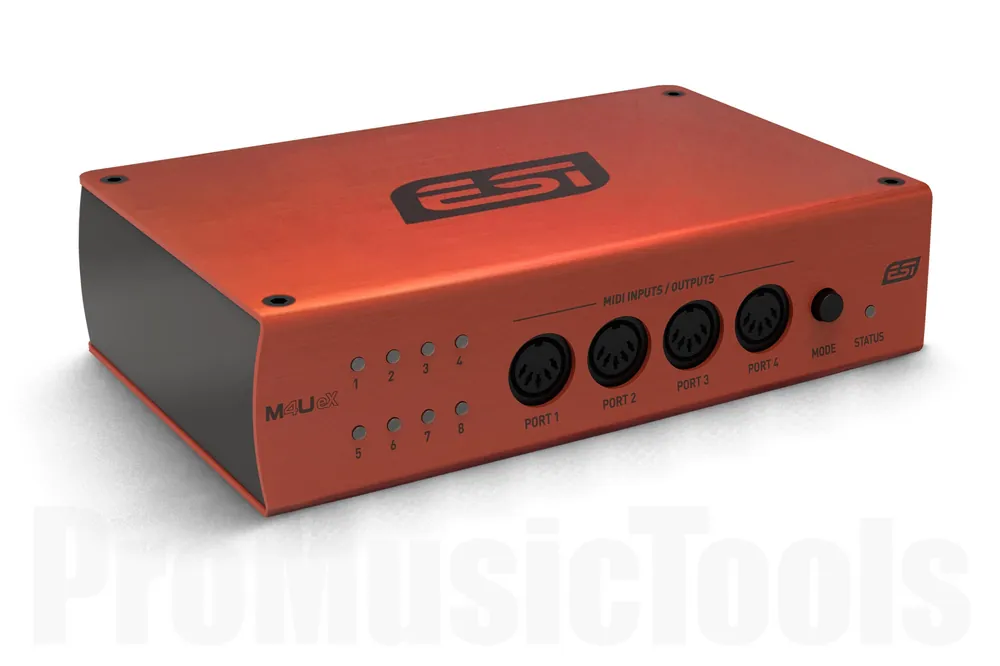

ESI M4U eX – 8-Port USB 3.0 MIDI Interface with USB Hub

• USB 3.0 MIDI interface
• 8 MIDI ports (5-pin DIN), 4 on the front, 4 on the back
• integrated 3-way USB hub (active, 5 V)
• automatic detection of input and output signals
• each port can act as a MIDI input or output
• Status LED per port (green=In, red=Out)
• works even without a computer (with fixed I/O pairs)
• can be used as a MIDI merger (17 to 1)
• can be used as a MIDI thru box (1 on 7)
• further operating modes can be selected via DIP switch (in the bottom)
• Power supply: via USB or the included DC power supply
• supports Windows 7/8/10, Mac OS X
• no driver installation required (class compliant)
• Dimensions (WxDxH): 17.2 x 10.5 x 4.3 cm
• weight: 0.7 kg
