Description

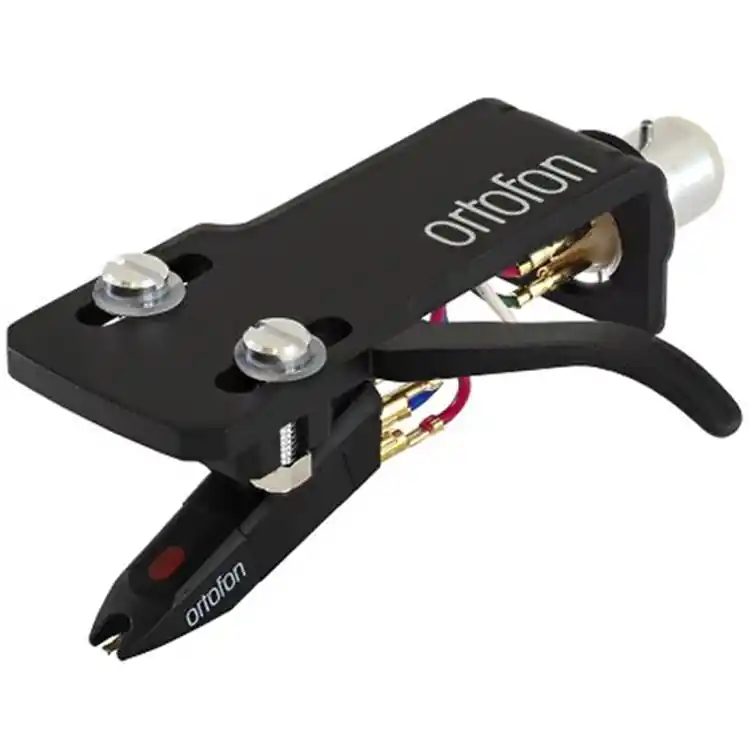

The OM Pro S on the SH-4 Black headshell is a practical and convenient solution for customers who wish direct and easy mounting and replacement on their S-shaped tonearm.
The OM Pro S is a consistent performer and a fine all-arounder!
Features
Universal mount fitting a wide range of S-shaped tonearms
Correct Baerwald alignment with the major part of tonearms with universal mount
Spherical stylus minimises scratching
Solid cantilever can survive hectic activity at the turntable
Specifications
Output Voltage at 1000Hz, 5cm/sec.: 5 mV
Channel Balance at 1kHz: 2 dB
Channel Separation at 1kHz: 20 dB
Channel Separation at 15 kHz: 15 dB
Tracking Ability at 315 Hz at Recommended Tracking Force: 70 m
Compliance, Dynamic Lateral: 7 m/m N
Stylus Type: Spherical
Stylus Tip Radius: R 18 m
Tracking Force Range: 3 – 5 g
Tracking Force Recommended: 4 g
Tracking Angle: 20°
Internal Impedance, DC Resistance: 750 Ohm
Internal Inductance: 450 mH
Recommended Load Resistance: 47k Ohm
Recommended Load Capacitance: 200-600 pF
OM Cartridge Weight: 5,0 g
OM Pre-mounted on SH-4 Weight Including Screws: 14,5 g
Replacement Stylus Unit: Pro S
