Description

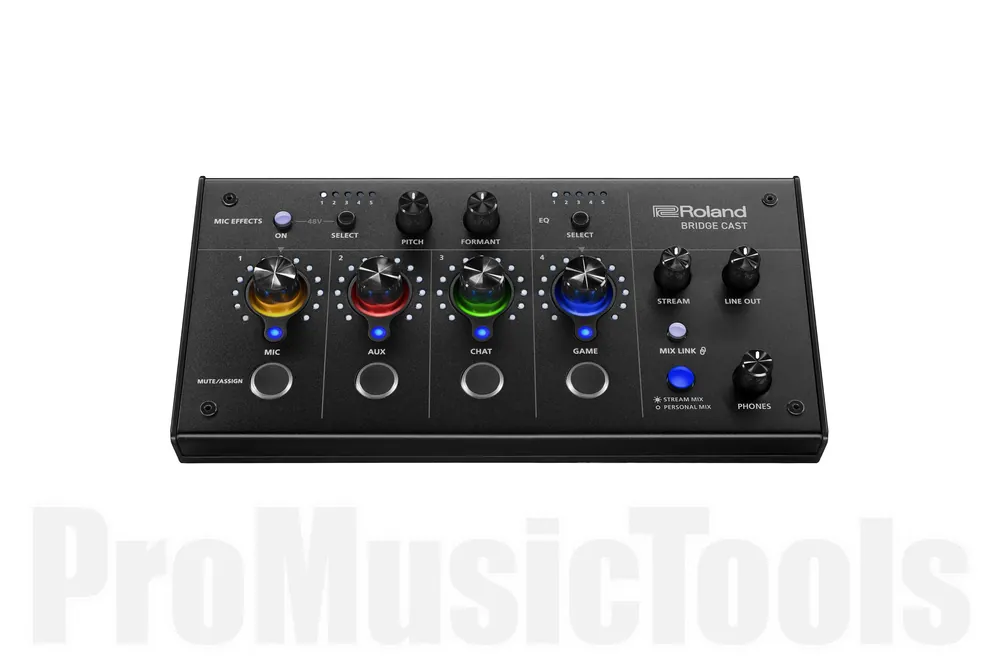

Roland Bridge Cast – Dual Bus Gaming Audio Mixer

Professional audio streaming interface and mixer designed for online gamers

Take online gaming sound to the next level with BRIDGE CAST, your all-in-one solution for premium livestream audio. This customizable desktop hub is packed with secret weapons to take out the competition, including dual sound mixes, vocal transformer effects, music playback, sound effects, and support for a broadcast-grade mic and headphones. In the heat of the battle, BRIDGE CAST ensures that your audio is always as epic as your gameplay.

Main Features:

• Powerful 32-bit hardware DSP allows you to dedicate all your computer resources to gaming and streaming
• Create independent mixes for you and the online audience with dual audio busses
• USB-C connectivity with Windows and Mac* computers and mobile devices
• Also works with the Sony PlayStation®5 console**
• High-quality XLR microphone preamp with phantom power for broadcast-grade mics
• Headphone-jack with a professional high-sensitivity output and support for a headset or inline mic
• Hands-on knobs and buttons for quick sound control
• Solid, streamlined design with customizable faceplate and adjustable knob LED colors
• Voice Changer effects derived from the Roland VT series
• High-quality vocal processing: EQ, compressor, noise suppressor, de-esser, and reverb
• Enhance your gaming performance with five customizable Game EQ presets
• Delay function to synchronize audio with video when needed
• Aux input for playing audio from a smartphone or external device
• Customize settings and save hardware configurations with the BRIDGE CAST app
• Add royalty-free music to streams via the BRIDGECAST app and Roland Cloud***

*BRIDGE CAST driver support for macOS coming in Q2 2023

**Some audio formats are not supported with PlayStation®5

***Roland Cloud support coming in Q2 2023

Specs:

Input Channel:

• MIC
• AUX
• CHAT (*1)
• GAME (*1)
• MUSIC (*1)
• SYSTEM (*1)
• USB (*2)
• (*1) When the USB port connection setting is « PC »
• (*2) When the USB port connection setting is « CONSOLE/MOBILE »

Output Channel:

• LINE OUT
• PHONES
• MIC (*3)
• STREAM (*3)
• PERSONAL (*3)
• USB(*4)
• (*3) When the USB port connection setting is « PC »
• (*4) When the USB port connection setting is « CONSOLE/MOBILE »

Connectors:

• MIC jack: XLR type (Phantom power DC 48 V, 6 mA Max)
• PHONES/HEADSET jack: Stereo miniature phone type (CTIA, PLUG-IN power)
• AUX jack: Stereo miniature phone type (TRRS)
• LINE OUT jack: Stereo miniature phone type (TRS)
• USB port: USB Type-C (R)
• USB DC 5V port: USB Type-C

Audio Mixing Bus:

• 2 (STREAM MIX, PERSONAL MIX)

Sampling Frequency:

• 44.1 kHz, 48 kHz, 96 kHz

Signal Processing:

• AD/DA: 24 bits
• Internal Processing: 32-bit Floating point

Effects:

• MIC: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut
• CHAT: De-esser, Compressor
• GAME: Equalizer
• STREAM: Delay

Audio File Player:

• Number of tracks: 2
• Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono)
• Maximum Time: 5 seconds/track
