Description

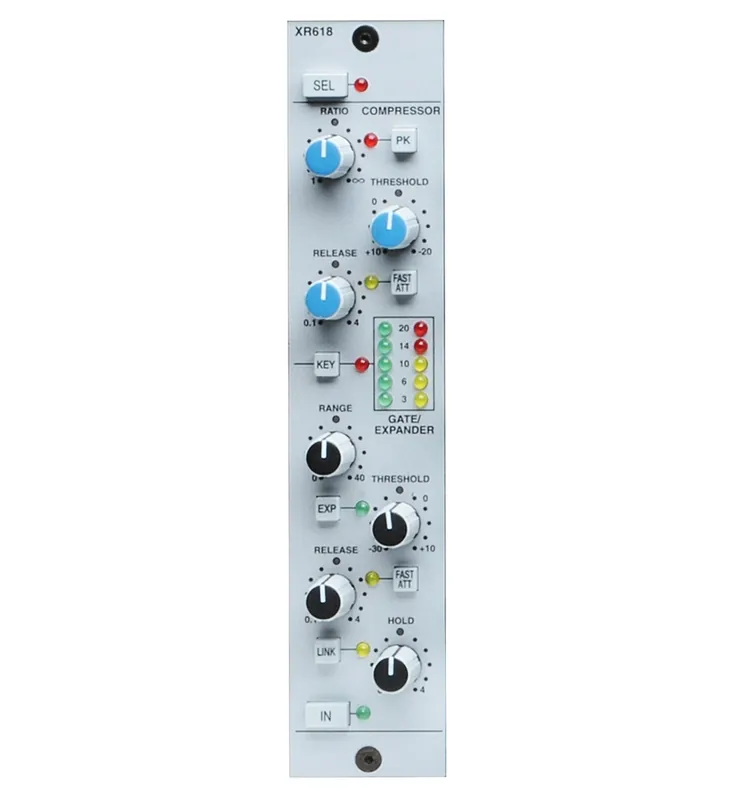

SuperAnalogue Dynamics Module
Designed to be the perfect level control tool kit for recording, the Dynamics Module is densely packed with control features yet simple to use. The combination of separate Compressor and Gate/Expander section is powerful, graceful and ideal for gentle and unobtrusive level control.
X-Rack is a modular rack system with Total Recall that delivers the classic SSL sound in a uniquely versatile form. Each X-Rack chassis holds up to eight modules in any configuration and there are a wide variety of modules on offer.
Dynamics Module Key Features
Fully balanced XLR input and output
Switched -10dB/+4dB operating level
Dedicated compression meter display
Over-easy RMS compressor, switchable to peak sensing hard knee
Variable Ratio, Threshold and Release
External key operation
Independently switched Gate/Expander section
Link facility for multiple module linking
Specs
Compressor/Limiter
Ratio (slope): Variable from 1 to infinity (limit)
Threshold: Variable from +10dB to 30dB
Attack Time: Normally auto sensing, switchable to 1mS
Release Time: Variable from 0.1 to 4 seconds
Expander/Gate
Range: Variable from 0 to 40dB
Threshold: Variable from 30dB to +10dB
Attack Time: Normally auto-sensing, switchable to 150s
Hold Time: Variable from 0 to 4 seconds
Release Time: Variable from 0.1 to 4 seconds
Performance Specification
THD + N (+10dBu applied): < 0.01% at 1kHz
THD + N(Fast Attack Mode): < 0.3% at 1kHz; < 0.05% at 10kHz
THD + N(Slow Attack Mode): < 0.03% at 1kHz; < 0.05% at 10kHz
Output Headroom:> +26dBu at onset of clipping
Frequency Response: 3dB at 130kHz; +/-0.2dB from 20Hz to 20kHz
Dimensions (D x H x W): 200 x 171 x 35mm (7.9 x 6.75 x 1.4 inches)
*approx., including front panel knobs, excluding connector
Weight: 260g / 9.5 ounces
