Description

The ELX200 series offers professional ElectroVoice audio quality, precision control, and robust, EVengineered components in an ultralightweight package – a truly potent blend of performance and portability. Get the smooth clarity of the EV sound in the right size to suit your needs: with 10inch, 12inch, and 15inch twoway models, and 12inch and 18inch subwoofers available, ELX200 is a flexible, featurerich choice for DJs, mobile entertainers, bands, and musicians.

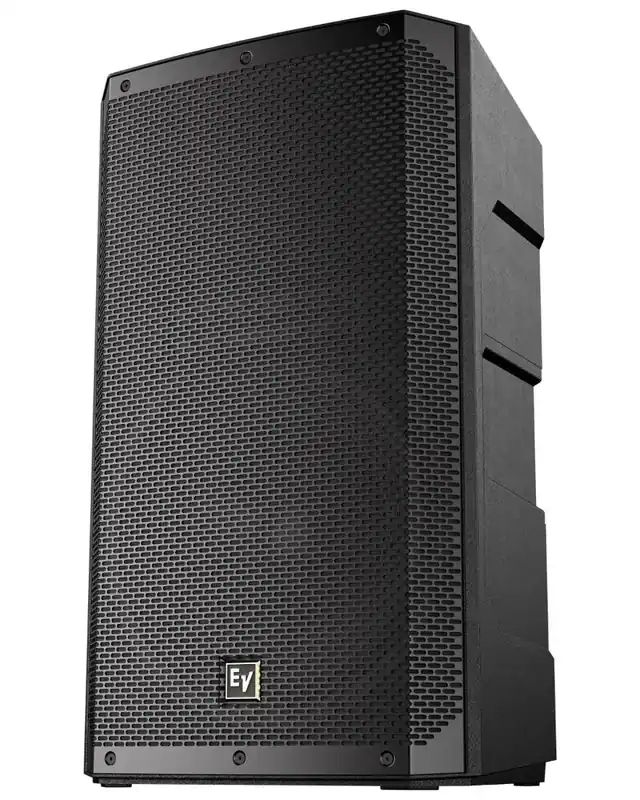

ELX200-15 Features
1200 W (peak), 130 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
High-output EVS-15M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical .
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
ELX200-15 Specifications
Speaker Type: Full-Range
Minimum Impedance: 7.0
HF Transducer: DH-1L 1-inch titanium compression driver
Woofer Size: 15 inch
Frequency Response (-3 dB): 77 Hz – 16 kHz
Frequency Range (-10 dB): 52 Hz – 19 kHz
Max. SPL/1m (calc): 130dB
Coverage (Nominal -6 dB) 90 H x 60 V
LF Transducer: EVS-15M 381 mm (15 in)
Crossover Frequency: 1.6 kHz
Recommended High-Pass Frequency: 42Hz
Nominal Impedance: 8
Axial Sensitivity (SPL, 1 W @ 1 m): 95dB
Power Rating: 1200W
Power Handling (Continuous / Peak): 300 W/1200W
Suspension: (3) M10 suspension points
Connector Type: Dual NL4
Enclosure Material: Polypropylene Composite
Grille: 18 AWG steel with powdercoat
Available Colour: Black or White
Dimensions (H x W x D): 27.95″ x 16.65″ x 15.12″ (710mm x 423mm x 384mm)
Weight: 41.23lbs (18.7kg)
