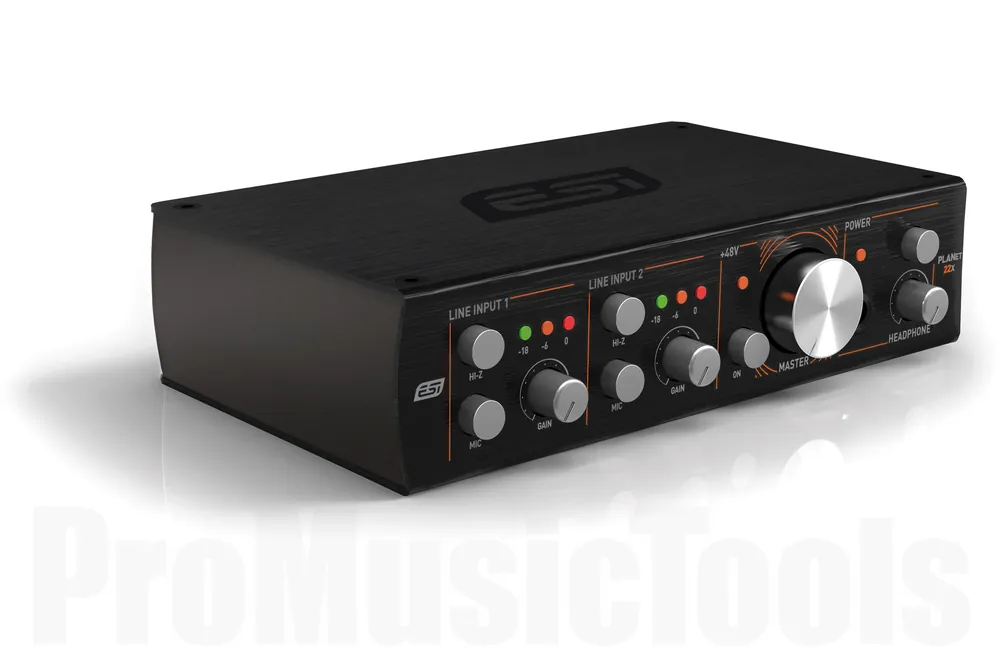

ESI Planet 22x – 2×2 Dante network audio interface with 2 microphone inputs

• 2×2 Dante network audio interface
• 2 Mic/Line/Instrument inputs (XLR/Jack combo jacks)
• 2 audiophile microphone preamps (67 dB gain)
• 48 V phantom power (switchable)
• 24 bit/96 kHz digital converter
• Dynamic range: 118 dB (A/D), 123 dB (D/A)
• 2 balanced line outputs (XLR, L/R)
• large, rasterized master volume control
• Headphone output (6.35 mm jack) with separate volume control
• Dante I/O: Ethernet jack (RJ45), 100BASE-TX with PoE support
• Power supply: external DC power supply or PoE (Power over Ethernet)
• supports Windows 7/8/10, Mac OS X 10.7 (or later)
• incl. license for Dante Virtual Sound Card (DVS) and Dante Controller (DC)
• incl. Deckadance LE and Bitwig 8-Track
• Dimensions (WxDxH): 17.4 x 11.5 x 4.5 cm
• weight: 0.8 kg
