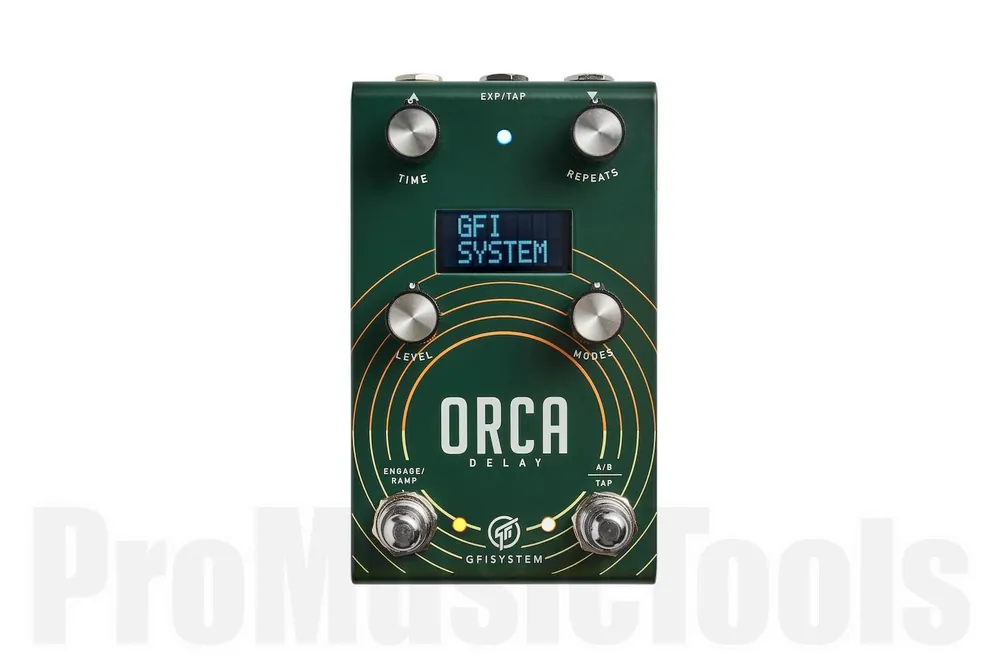

Orca packs four quintessential GFI Systems delay algorithms into a compact pedal that is straightforward and easy to use. Intuitive user interface coupled with an LCD screen makes it a breeze to navigate through Orcas vast sonic pallete and features.

Orca supports both mono and stereo input/output. Mono connection is made using standard TS patch cables while stereo connections is made via TRS patch cables (a splitter-Y cable may be needed).

A multi-purpose jack provides connection to an expression pedal or tap-tempo pedal. Expression pedal input enables expressive control over the delays parameters, and the external tap-tempo can be used for remote tempo control.

Algorithms

• Digital (max delay time: 1 second)
• Tape (max delay time: 1 second)
• Diffuse (max delay time: 1 second)
• Ambiental (max delay time: 840 milisecond)

Key Features

• 4 select delay algorithms.
• 2 presets
• Analog dry-through
• 4 knobs with button
• Intuitive interface with LCD screen.
• Mono / Stereo input and output.
• Expression pedal and tap-tempo input.
• Momentary action supported.

Specification

• Input impedance: 1 MOhm.
• Output impedance: 1K Ohm.
• DAC / ADC resolution: 24 bits.
• Current consumption: ~110 mA.
• Weight: 0.6 Kg (1.6 lbs).
• Dimension: 12 (L) x 7.2 (W) x 5.5 (H) cm
• Power source: 9VDC (negative center).
