Description

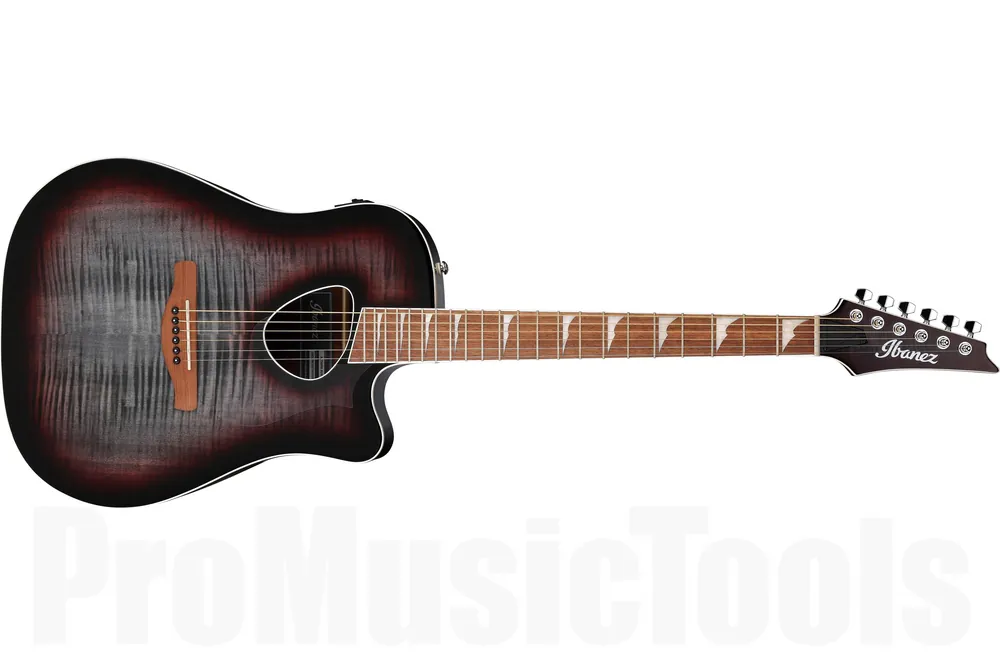

IbanezALT30FM-RDB – Red Doom Burst High Gloss
- Number of Strings: 6
- Neck Type: Comfort Grip
- Neck Joint: Dovetail
- Neck Joint Position: 16th fret joint
- Neck Material: Maple
- Neck finish: Satin Polyurethane
- Neck thickness (1st fret, mm): 20
- Neck thickness (7th fret, mm): 21
- Scale (mm): 648
- Nut width (mm): 43
- End width (mm): 55mm at 16F
- Number of fret: 22
- Fretboard: Walnut
- Fretboard Radius (inch): 15.75
- Fretboard Radius (mm): 400
- Inlay: Altstar specially designed
- Body Shape: Altstar
- Body Top material: Flamed Maple
- Body Sides Material: Sapele
- Body Back material: Sapele
- Body Depth: 4.375
- Body Width: 14.625
- Body Length: 18.125
- Body Depth@Joint: 90
- Body Depth@End: 110
- Body finish: Gloss Polyurethane
- Total length (mm): 1036
- Body thickness (mm): 110
- Body length (mm): 460
- Body Width (mm): 370
- Bridge: Walnut
- Bridge pins: Ibanez Advantage
- Saddle material: Plastic
- String spacing (mm): 10.5
- Nut: Plastic
- Machine Head: Chrome Die-cast tuners (18:1 gear ratio)
- Other Pickup: Ibanez Undersaddle
- Preamp (for Acoustic): Ibanez AEQ-2UT preamp w/Onboard tuner
- Controls, Pickup selector: 1 Volume, Bass, Treble
- Other Swtiches: Tuner on/off switch
- Output Jack: 1/4″ output
- String Gauges (from top to bottom): .010/.014/.023/.030/.039/.047
- Special Strings: Ibanez IACS61C
- Tuning (from top to bottom): 1E,2B,3G,4D,5A,6E
- Recommended Bag: ICB540-BK
- Other item(s) included: Hex wrench, Saddle, Bridge pin
- Batteries Required: CR2032 x2
