Description

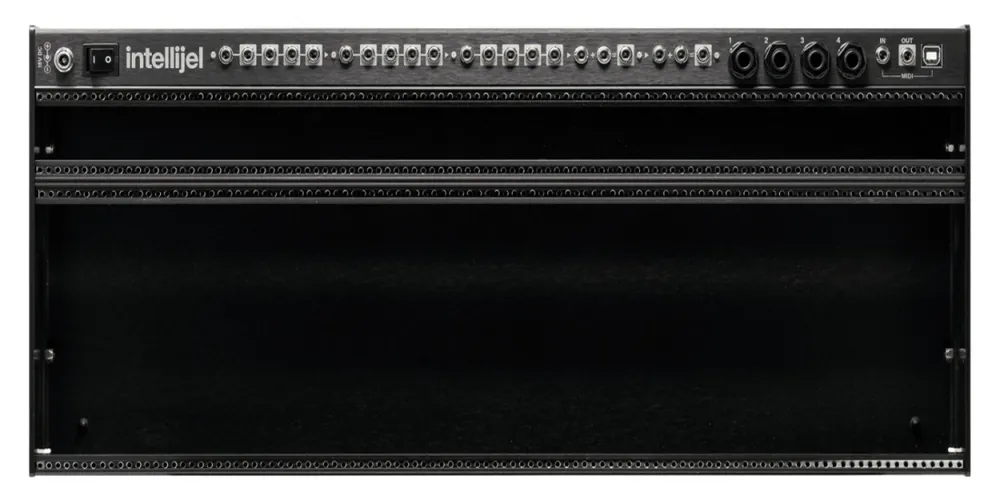

Your Palette case is the ideal solution for your space conscious and/or portable needs. It fits comfortably on your desktop; at your favourite coffee shop; in your jam space; or pretty much anywhere else you might desire to play.
Your imagination is the only limit. With 104hp of rack space, you can piece together powerful but focused mini systems and control surfaces. Intellijel’s 1U row and built-in i/o ports add a ton of extra utility to bring the most out of your eurorack modules. Truly a palette for the sonic artist.
Features
One 104 hp row of Eurorack (3U) module space
One 104 hp row of Intellijel (1U) module space
Built in triple buffered multiple with bi-polar led level indicators
Built in dual precision summers with bi-polar led level indicators
Expansion jacks for MIDI and balanced audio i/o
Threaded M3 strips for mounting modules
High spec 60 Watt power supply capable of powering up to 24 modules with +12 V output at 1500 mA, -12 V output at 1500 mA and +5 V output at 500 mA
Triple 1:4 buffered multiple
Dual 2:1 precision summer
Four 1/4 balanced audio jacks that can be connected to the Stereo Line Out 1U, Stereo Line In 1U, Pedal I/O 1U or Mixup
1/8″ (3.5mm) MIDI Input that can be connected to MIDI 1U
1/8″ (3.5mm) MIDI Output that can be connected to MIDI 1U
USB port that connects to the MIDI 1U and other future modules
Rocker switch and barrel plug for power entry
Specifications
Dimensions: 537.7 x 204.4 x 51.3mm
Weight: 2.6 kg
Palette PSU: +12V output at 1.5A, -12V output at 1.5A, +5V output at 500mA
Module Depth: 45.5mm (37.4mm at each 1HP edge)
