Description

Stereo audio is becoming more popular in the rack as more effects make it over to eurorack. Mixup makes is easy to combine your mono and stereo sources into a single stereo mix. You have mute and level control over the first three channels and, using a rear connector, you can chain multiple Mixups together into a hidden 5th stereo channel without using up channels on the front panel.
Mighty Mini Mixer

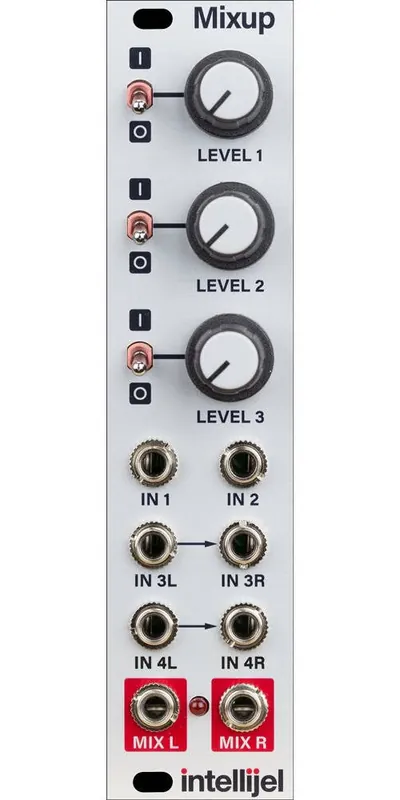

Mixup is a versatile, expandable audio mixer for eurorack format. It has eight inputs (6 on the front panel) and two outputs. Inputs 1 and 2 are single-channel mono inputs, each with its own mute switch and level control; Input 3 is a dual-channel stereo input with a shared mute and level control; and input 4 is an auxiliary unity-gain, non-mutable stereo input.
Features
Mixes up to eight channels to a stereo output.
Mute switches and level knobs for channels 1 to 3.
Chain-able with other Mixup modules.
Specifications
Width: 6HP
Depth: 29mm
Power:
15mA @ 12V
16mA @ -12V
