Description

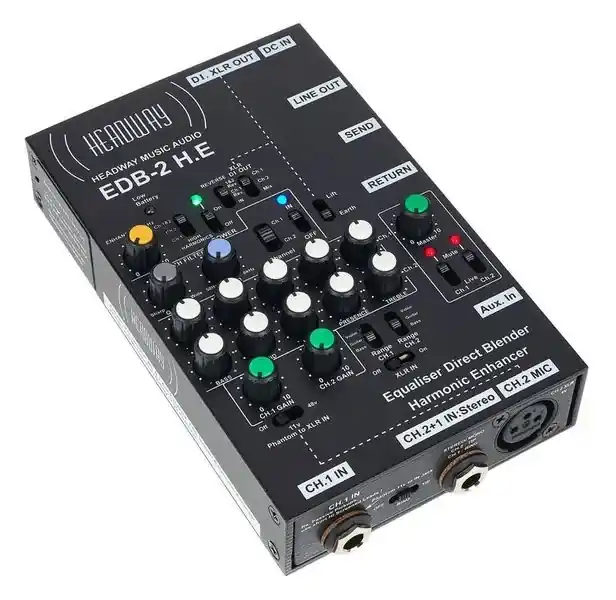

The new Equaliser Direct Blender 2 Channel Harmonic Enhancer from Headway Music Audio Ltd. – is an update to the successful EDB-2.
The EDB-2 H.E boasts Refined Class A Inputs and Pro Audio IC Components, easy to read Pro-Audio design layout & sturdy metal housings built to withstand life on the road. The EDB-2 is supplied with belt clips, rubber feet, and is threaded for microphone stands.
You can completely shape your sound with its five band interactive EQ, switchable input impedance and three way Range Switch, offering acoustic Guitar, Bass or Violin settings, which cut unwanted low end tones, below the usable frequency range of the instrument. This cuts body handling noise, unwanted resonances, feedback and Violin bowing noise. Feedback and other resonance problems may be further tackled by a very effective, broad ranging tunable notch filter and a Phase Reverse control.
« The Swiss Army Knife for the gigging musician. »

Specifications:

NEW Harmonic Enhanced Analogue Technology (H.E.A.T.) with tuneable added high harmonics
Twin Channels with two sets of 5 band interactive EQ & two silent mutes
5 Band EQ assignable to Channel 1, 2 or both
48v & 11v Phantom Power To Jack & XLR – mono & stereo inputs
Improved Class « A » Inputs & top pro audio circuit – producing a huge 32dB of low noise gain
Send & return FX loop
Mono, stereo or blended outputs via jack & XLR
Tuneable notch filter to beat feedback & resonances on either channel
Phase Reverse assignable to each channel
Earth Lift Switch
« Range » Switches (HPF) for Guitar, Bass or Violin/Mandolin via each channel
Battery or External DC Plug In Power Supply
3 Mounting methods
Comprehensive manual
Sturdier, lightweight, super compact construction in aluminium alloy & long-life heavy-feel controls that stay put.
Designed in UK Made in Europe
Weight: 550g
Dimensions (L x W x D): 138mm x 93mm x 38mm ( D: 43mm incl. low profile knobs. )
