Description

The Radial J-Iso is a pro to consumer signal converter. It is designed to take a +4dB balanced line level and bring this down to a -10dB unbalanced format for easy manipulation with computers, hand held recorders and other unbalanced systems. Set and forget controls allow the system tech to set levels for optimal signal transfer. The J-Iso and Pro-Iso differ with respect to the transformer and audio signal path. The J-iso is designed to deliver full bandwidth audio while the Pro-Iso is band limited for the voice range.

Features

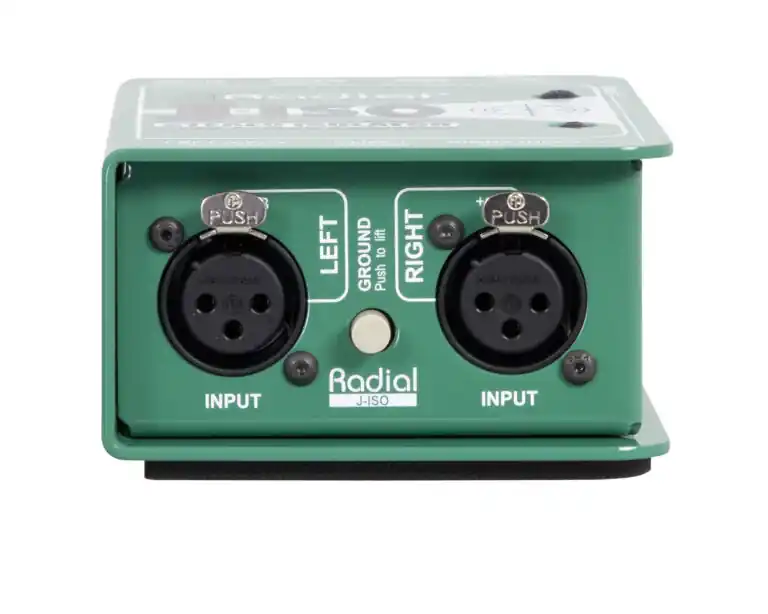

XLR Inputs – +4dB balanced inputs follow AES standards for easy interface with professional gear
Ground Lift – disconnects ground at the XLR pin-3. Helps eliminate hum and buzz caused by ground loops

Specifications

Audio circuit type: Passive, transformer based
Transformer: Jensen JT-11-YMPC
Number of channels: Stereo (dual mono)
Frequency response: 20Hz – 20KHz (+0dB/ -1.5dB)
Dynamic range: 130dB
Total harmonic distortion: 0.001% @ 1kHz
Phase Deviation: 0.5° @ 100Hz; 1° @ 20Hz
Input Impedance: 1.3k Ohms, balanced
Output Impedance: 200 Ohms, unbalanced (when output control is set to max)
Common Mode Rejection Ratio: -58dB
Maximum Input: +20dBu @ 1kHz/1% THD+N
