Description

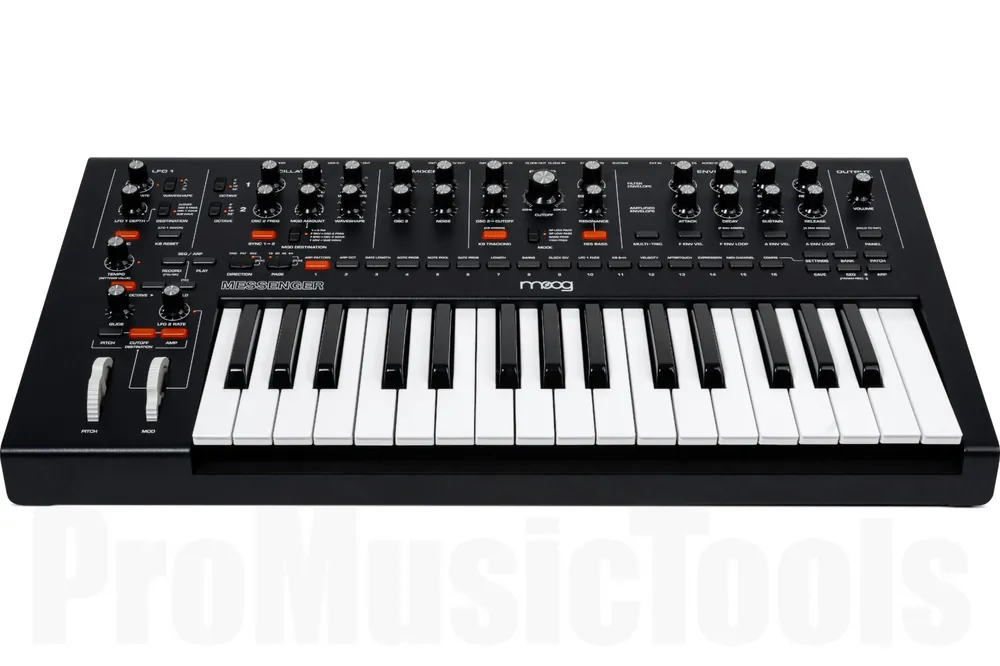

Moog MessengerMonophonic Analog Synthesizer

With the Moog Messenger, the manufacturer of many classic synthesizers is venturing into the future without forgetting its roots. Messenger carries parts of the DNA of Minimoog Model D, Voyager, Grandmother, and Subsequent 37. At the same time, the developers have further refined the analog circuits and integrated new functions that Moog has never offered before. Even the transistor ladder filter, the Moog icon par excellence, has been redesigned and supplemented with the innovative RES-BASS function. The oscillators and other elements have also been expanded and a sequencer integrated, making the analog synthesizer fit for the demands of modern productions. Thanks to its well-structured panel, the keyboard does not need a display or menus, making it ideal as a live instrument.

• 32 semi-weighted keys, velocity-sensitive and with aftertouch
• Pitch and modulation wheels
• 2 oscillators with wavefolder and crossfadeable waveforms (triangle, sawtooth, square with adjustable pulse width), octave selector switch, FM and hard sync
• Sub-oscillator with variable waveform (from triangle to square with adjustable pulse width)
• Noise generator
• Multimode ladder filter (24dB low-pass, 12dB low-pass, band-pass, high-pass) with switchable resonance level compensation and adjustable feedback/external input
• LFO 1 with 4 selectable waveforms (triangle, sawtooth, ramp, square) and 4 modulation destinations
• LFO 2 with triangle waveform for modulation of pitch, cutoff, and amplifier
• 2 ADSR envelopes with loop function
• Arpeggiator/sequencer with up to 64 steps, storable per preset
• Memory slots for 256 presets
• Line output: 1/4″ jack
• Stereo headphone output: 6.3 mm jack
• Line input: 6.3 mm jack
• Input for sustain and expression pedal: 2 x 6.3 mm jack
• CV/Gate inputs and outputs: 4 x 3.5 mm jack
• Clock input and output: 2 x 3.5 mm jack
• MIDI input and output: 5-pin DIN
• USB-C port for USB-MIDI
• Dimensions (W x D x H): 585 x 322 x 97 mm
• Weight: 4.95 kg
• Includes external power supply (12V DC)
