Description

12″ Aluminum 6mm Truss Top Plate and 1 3/8 Speaker Stud Mount for F34 F32 F31 Conical Square Truss with Connectors

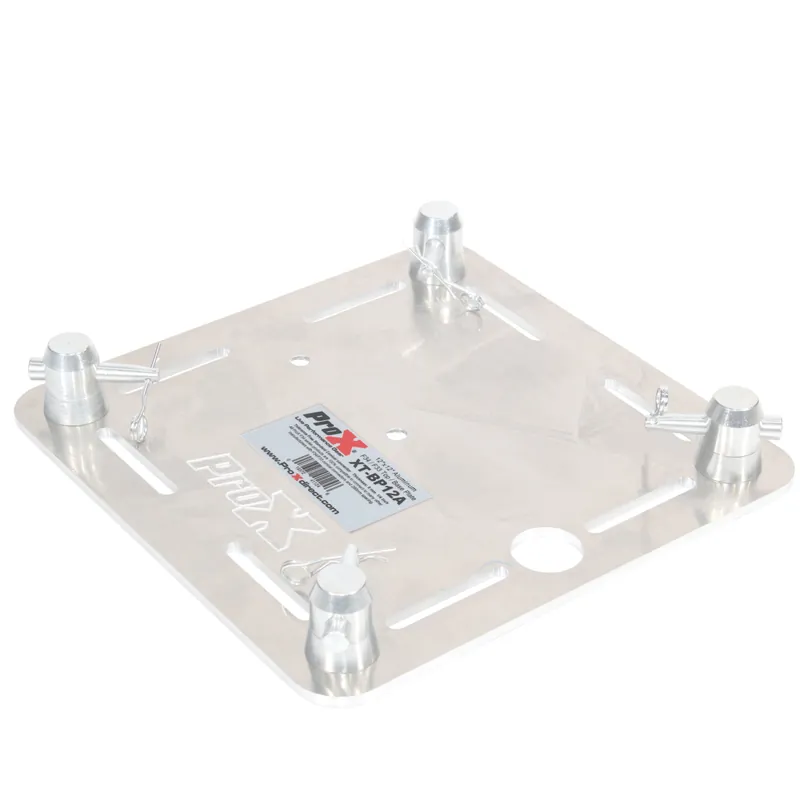

This 12″ x 12″ Aluminum 6mm thick base plate is forged out of tough EN-AWT6 6082 Aluminum material. Its robust build gives you all the confidence you need when combining your truss segments and or any other compatible products. Includes connecting hardware set.
ProX uses industry-standard dimensions that are compatible with most other truss manufacturers.
The plate has CNC machined slots near the edges and at the center a mounting hole. It also has an offset hole for the included XT-SPST 1 3/8″ Speaker Mounting Stud which allows you to securely mount virtually any PA audio speakers, moving heads and other types of lighting. It also has a larger offset hole for routing and concealing cables.

Features

12×12″ Top plate
For F34 conical truss
Includes 1-3/8″ speaker stud
Compatible with other brands
6mm Plate thickness
Material: EN-AWT6 5052
Smooth rounded edges
Dimensions: 2.00″H x 13.00″W x 13.00″L
Weight: 6.00 lbs
