Description

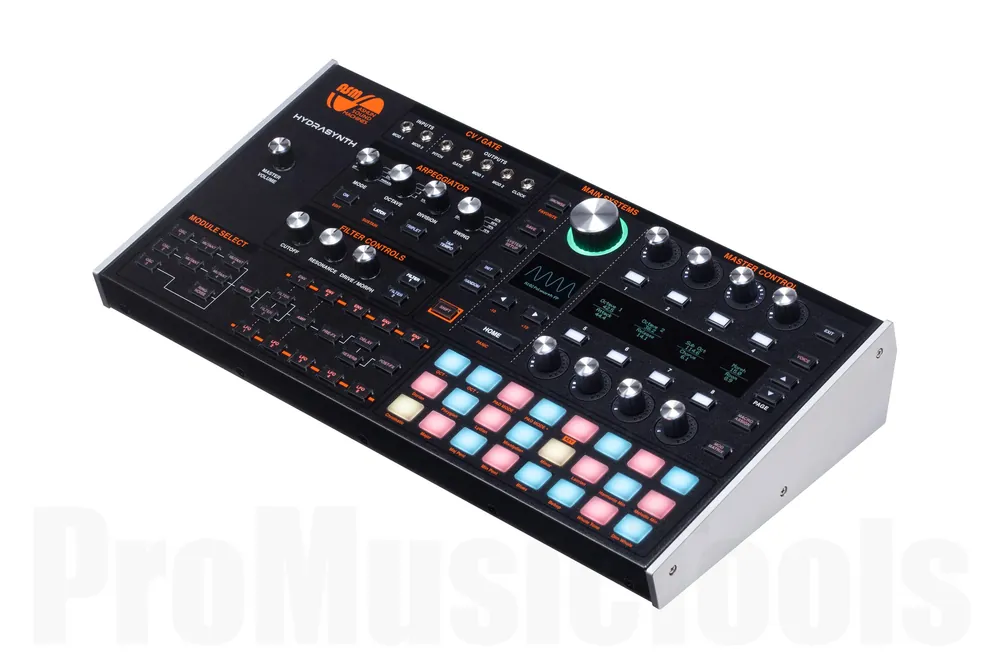

The HYDRASYNTH Desktop / Rack has the same great sound engine as the HYDRASYNTH Keyboard. The sound engine is a sound designers dream synth as well as a performing musicians ideal. The sound engine is designed for maximum flexibility. At the same time, ASM designed the user interface in a way to allow you to edit the patch quickly with a minimal amount of paging and many workflow shortcuts.

Utilizing an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutators and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.

As for the performance capabilities, The Hydrasynth Desktop / Rack has 24 polyphonic pressure touch pads so that you can play the unit without needing to connect a keyboard or other controller. Using multiple pad layout modes as well as quick to access scale modes, the Hydrasynth Desktop / Rack is easy to make music on.

The Hydrasynth Desktop / Rack comes with rack ears so that you can mount it in a standard 19″ rack.

• Digital wavemorphing synthesizer
• 24 pressure and impact sensitive Polytouch® pads including layouts and scales
• 8 voices
• Full polyphonic aftertouch
• High quality and robust metal housing
• Aluminum side panels
• Arpeggiator including ratchet, chance, gate time & swing (8 modes)
• 3 oscillators with 219 single cycle waveforms
• WaveScan parameters for modulating with wavetables
• Wavelist mode for fading up to 8 wavetables
• 8 custom wavelists per oscillator
• Mixer including noise generator and ring modulator
• 2 filters (serial or parallel) Filter 1 with 11 different filter models (12 & 24 db ladder, vintage ladder, HP, LP, Vocal etc.)
• Filter 2: 12 dB (SEM style) per octave including continuous sweep from low to band to high pass
• Oscillators 1 and 2 each have 2 mutants including FM-Linear, Wavestack , Hard Sync, Pulse Width, PW Squeeze, PW ASM, Harmonic Sweep
• 4 octave ribbon controller (67 cm) including theremin mode
• Modulation matrix
• 32 user-definable modulation routings 5 DAHDSR envelopes 5 LFOs (including Sine, Triangle, Square, Saw up, Saw down, S&H, Low random, Noise, Pulse width, etc.)
• LFO’s including delay, fade in, 3 trigger modes, smoothing, start phase, one-shot mode
• 5 banks with a total of 128 patches
• 256 factory patches
• CV gate inputs and outputs
• 8 high-resolution encoders including LED rings
• OLED displays
• Patch macros
• Support of all common CV / GATE standards
• V-trig, S-trig: 3.5 and 10 volts
• 1 volt per octave +/- 5V, 1 volt per octave 0-10V, Hz to volt +/- 5V, Hz to volt 0-10V
• Clock input and output (1 PPS, 2 PPQ, 24 PPQ, 48 PPQ)
• Clock voltage: – 3, 5, 10 and 10 volts
• USB (USB MIDI In / Out)
• MIDI IN / OUT / THRU
• PC / MAC-based Patch Manager plug-in
• Pre and post effects for unique sound processing
• Delay & Reverb
• Side panels made of aluminum
• Expression pedal input
• Sustain pedal input (automatic polarity detection)
• Dimensions: 440 x 223 x 70 mm
• Weight: 3600 g
