Description

Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding.

• At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.
• This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.
• Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.

Includes:

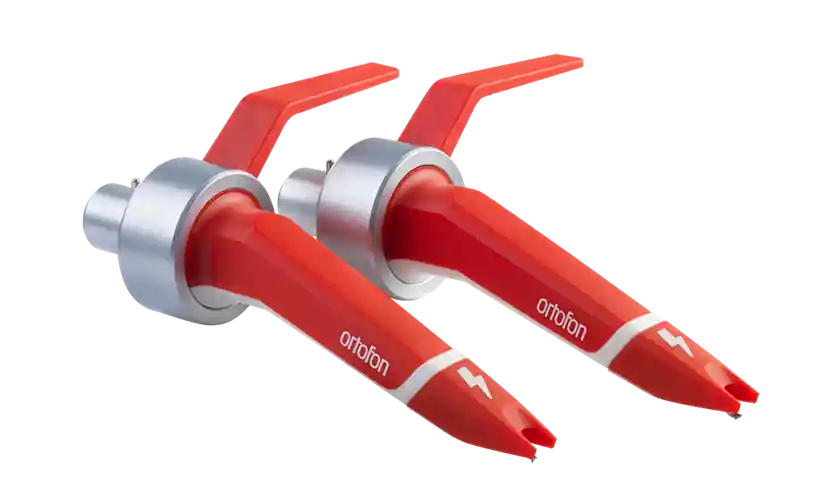

– 2x Concorde MkII MIX Cartridges with preinstalled stylus
– Flight case
Technical Data
Stylus Type: Spherical
Tracking Force: 4.0 g
Output Voltage: 10 mV
Frequency Range: 20-18.000 Hz
Output voltage at 1000Hz, 5cm/sec.: 10 mV
Channel balance at 1kHz: 1 dB
Channel separation at 1kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force: 100 m
Compliance, dynamic lateral: 14 m/m N
Stylus type: Spherical R 18 m
Tracking force range: 3 – 5 g
Tracking force recommended: 4 g
Cartridge weight: 18.5 g
