Description

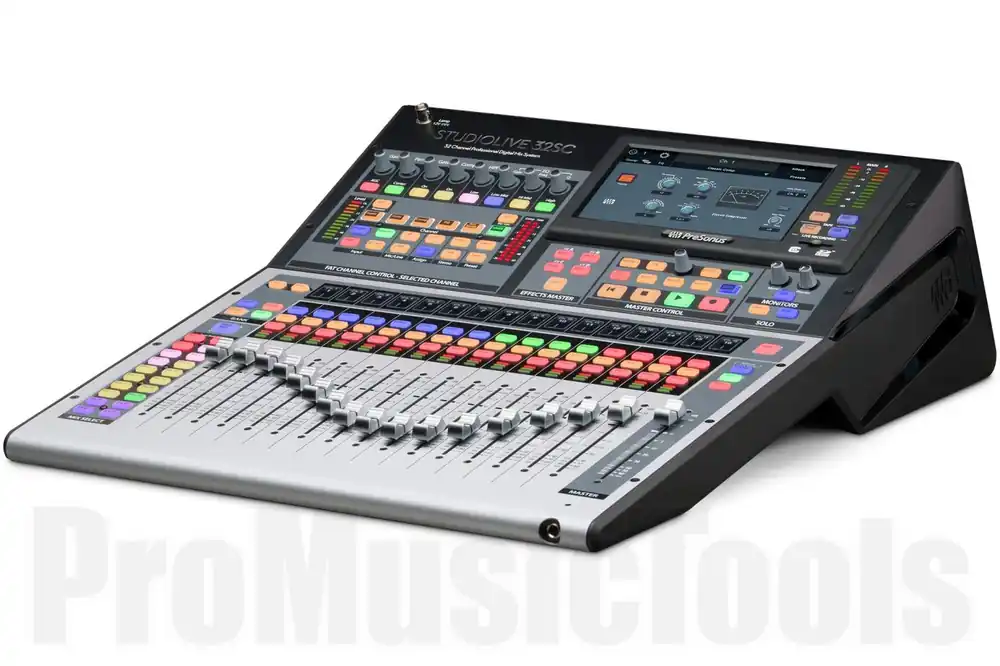

Presonus StudioLive 32SC Mixers

The StudioLive 32SC is a compact, rack-mountable 32-channel digital mixer that can be quickly and easily scaled for 16-, 24-, and 32-channel applications. Don’t let the road-ready size fool you; the StudioLive 32SC sports a dual-core PreSonus FLEX DSP Engine powering 40 mixing channels, 26 mix buses, and 286 simultaneous processorsincluding 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. With 128 (64×64) channels of USB recording and AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32SC provides all the tools you needwhether youre building your dream studio or putting together a pro touring rig.

Features

Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class

40 input-channel digital mixer with 17 touch-sensitive motorized faders

• 16 local digitally controlled XMAX mic/line inputs
• 16 digital channels (AVB, USB, or SD)
• 2 balanced stereo aux inputs
• 1 stereo tape input (RCA, USB, AVB or SD)
• 4 FLEX FX returns
• 1 Talkback

26 mix buses

• 16 FlexMixes (Aux, Subgroup, Matrix)
• 4 dedicated FLEX FX buses
• 4 dedicated subgroups
• Stereo main bus

286 simultaneous processors

• HPF
• Gate/expander
• Compressor with Fat Channel plug-in models
• 4-band/6-band parametric EQ with Fat Channel plug-in models
• Limiter
• 31-band graphic EQ

DAW Control

• Advanced Studio One control integration
• MCU emulation mode optimized for Logic
• HUI emulation mode optimized for ProTools
• Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
• Put your musicians monitor mix under their fingers with QMix-UC (included) for iOS or Androidv

Capture 3.0 multitrack software included

• Automated Virtual Soundcheck
• Store StudioLive mix scenes with your audio

Advanced Studio One integration (Studio One Artist Included)

• XMAX mic preamp control from Studio One
• Control Fat Channel parameters from Studio One mixing console
• Fits in a standard 19-inch rack with optional rackmount kit

4 FLEX FX slots featuring legendary classic reverb emulations and delays

State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus

FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses

24 DCAs to control groups of channels

128-channel (64×64) recording over USB

Onboard multi-channel SD recorder (34×34) with true Virtual Soundcheck mode

AVB networking onboard (64×64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers, and more

User Profiles for managing multiple operators with custom permissions

Per-channel digital patching from any analog, AVB, USB, or SD Card source
