Description

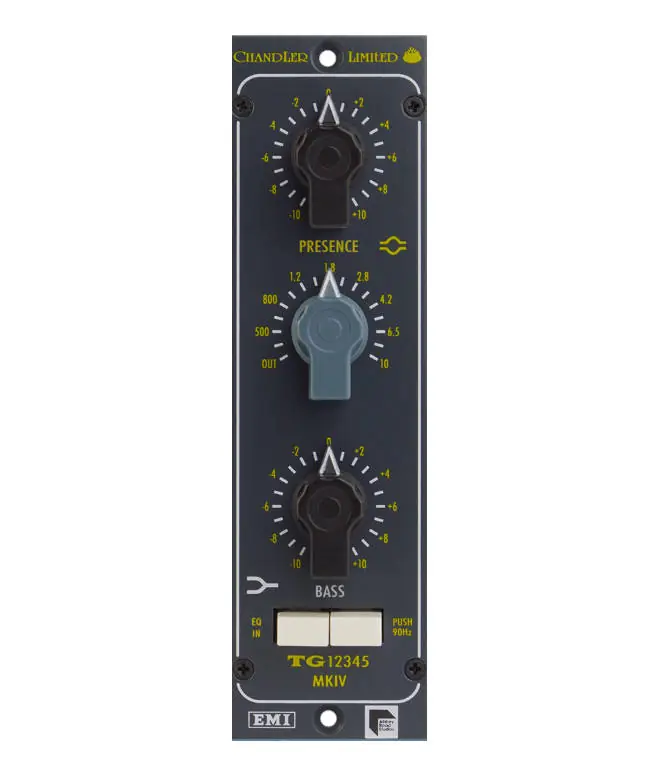

The Chandler Limited TG12345 MKIV equalizer is a handmade, fully discrete, mono, single space module, designed for the 500 Series format.
The TG12345 MKIV control-set includes: presence and bass bands, with continuous boost/cut, and true bypass. The presence band is switchable, featuring eight frequencies and an out position. The first seven frequencies are bell type, and the eighth is a shelf at 10 kHz. The bass band is a shelving type, featuring two frequency options, 90 or 150 Hz. The remarkable character of the TG12345 MKIV EQ is silky smooth and the sound is Curve Bender sweet.
Specs:
Channels: Mono
Circuit: Discrete, Transistor
Presence: Switchable, 8 Frequencies, Out position, Continuous boost/cut
Presence Curve: Bell and Shelving (10 kHz)
Presence Frequencies: 500, 800, 1.2, 1.8, 2.8, 4.2, 6.5, 10 kHz
Bass: Switchable, Continuous boost/cut
Bass Curve: Shelving
Bass Frequencies: 150, 90 Hz
Bypass: True Bypass
I/O: 500 Series format (frame dependent)
Power, 500 Series format: +/-16v
Max. current draw: +16v @ +105ma / -16v @ -90ma
