Description

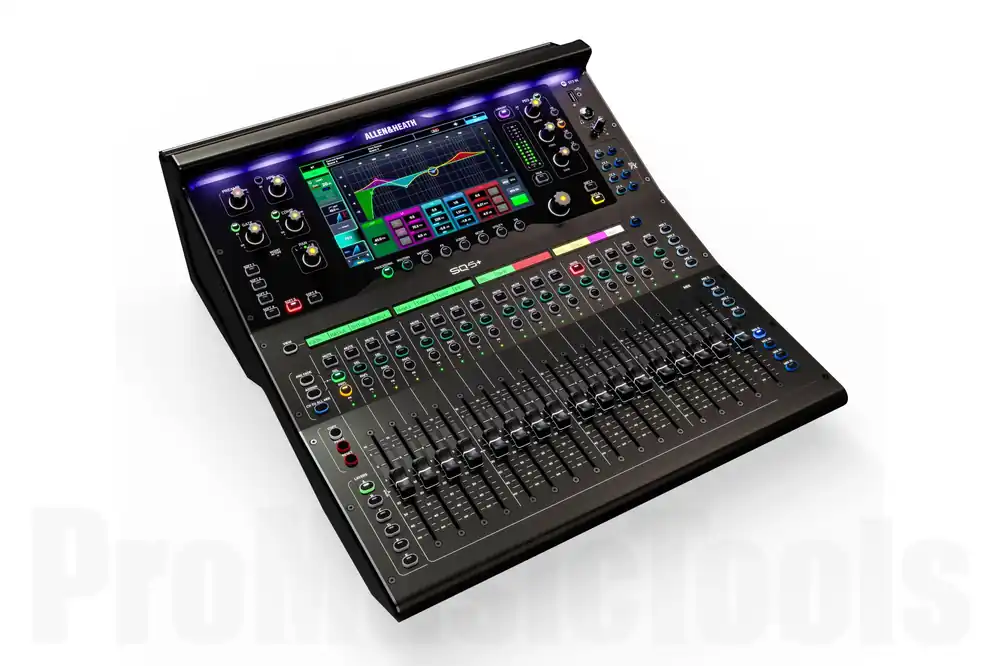

Allen & Heath SQ-5+48-channel Digital Mixer
Compact, powerful, and versatile, the Allen & Heath SQ-5 is a premium 48-channel digital mixer designed for professionals who need exceptional performance in a portable format. It features 16+1 motorized faders, 16+1 onboard preamps and 8 assignable SoftKeys, providing comprehensive control in a compact 19 rack-mountable design.
- Sample rate: 96 kHz
- XCVI FPGA core with very low latency (0.7 ms)
- Input channels: 48
- Mix buses: 44 (12x mono / stereo group / aux + master, 8x multi-FX, 4x Rack Ultra FX, 6x matrix, 1x stereo PAFL)
- 8 DCA / Mute groups
- 9″ touchscreen
- 17 motorised 100 mm faders / 6 layers
- Chromatic 12-segment LED level meter
- Backlit buttons and knobs
- Channel LCD displays
- 8 assignable SoftKeys
- Optional DEEP Processing allows integration directly into a channel strip without increasing latency
- SLink connection for 128 x 128 Everything I/O
- 64 x 64 I/O connection for expansion cards (128 x 128 with SLink card)
- 32 x 32 USB-B audio interface @48/96 kHz, 16/24-bit
- SQ-Drive USB-A for stereo / multichannel audio recording / playback (stereo @48/96 kHz, 24-bit / 16 channels @96 kHz, 24-bit / 32 channels @48 kHz, 24-bit)
- Dimensions (W x D x H): 440 x 514.9 x 198 mm
- Weight 11.2 kg
