Description

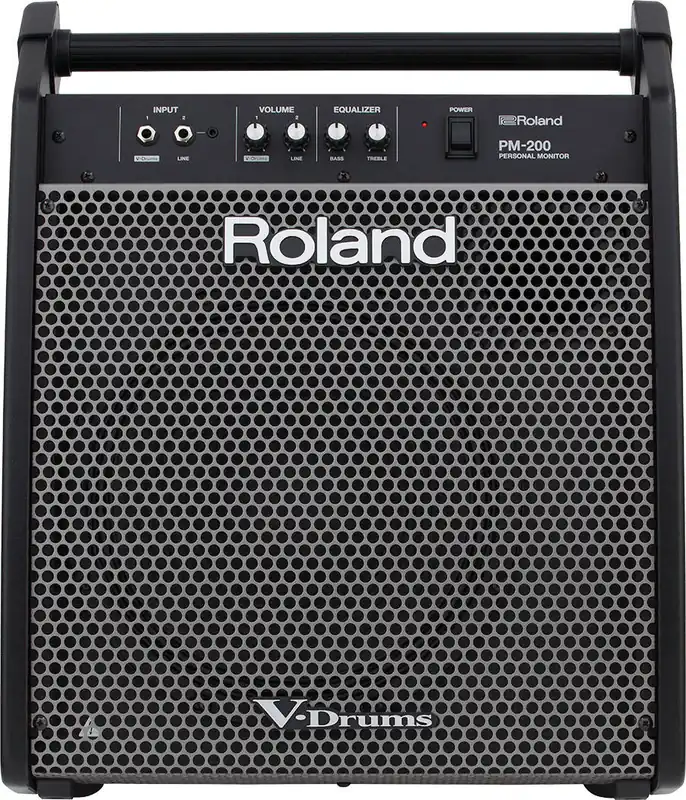

High-resolution sound monitoring, fine-tuned for Roland’s V-Drums
Delivering rich, dynamic sound in a streamlined package, the PM-200 is the ultimate monitoring solution for Roland’s V-Drums. Packing 180 watts of power, the PM-200 features a custom full-range speaker system and rugged cabinet specially optimised for reproducing the famously expressive V-Drums sound and response. And with integrated mixing and direct output capabilities, it’s easy to interface with other devices at home or on stage.
Features
Premium all-in-one monitor designed for use with V-Drums electronic percussion products
Equipped with 180 watts of power, a custom 12-inch speaker, and horn tweeter
Angled design provides ideal sound coverage for the seated player
Integrated mixer with independent volume controls and global EQ
Dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players
Two XLR direct outputs, with selectable stereo or dual mono output for a V-Drums module connected in stereo
Unique full-width bar handle for easy floor adjustment and carrying convenience
Specifications
Rated Power Output
– 180 W
Nominal Input Level
– V-Drums Input: -6 dBu (10 k ohms)
– Line Input: -6 dBu (10 k ohms)
Speakers
– 30 cm (12″) Woofer x 1, Tweeter x 1
Controls
– Power switch
– V-Drums volume knob
– Line input volume knob
– Bass knob
– Treble knob
– Direct out switch
Indicators
– Power
Connectors
– V-Drums Input Jack: Stereo 1/4″ phone type
– Line Input Jack: Stereo 1/4″ phone type, Stereo miniature phone type
– Direct Out Connector: XLR type
– AC In Jack
Power Consumption
– 64 W
Accessories
– Owner’s Manual
– Power Cord
Dimensions
– 458 x 469 x 420 mm (18-1/16 x 18-1/2 x 16-9/16″)
Weight
– 21.0 kg (46 lbs 5 oz)
