Description

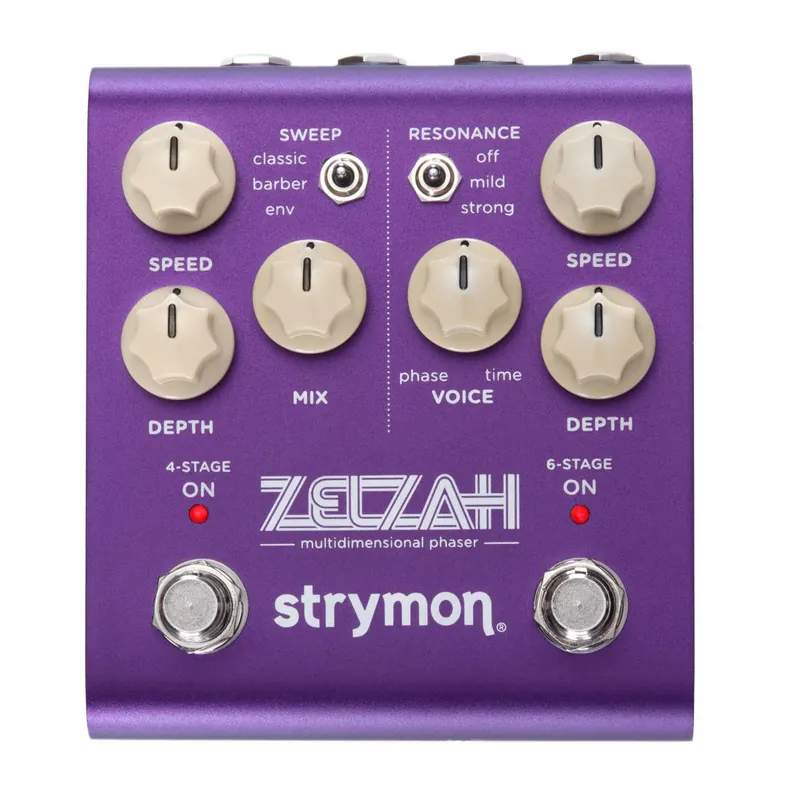

Step on Zelzah, play one chord, and you’re instantly taken back to a world of classic phaser tones as they were always meant to sound, perfectly voiced, with tons of vibe.
Two Effects at Once
Zelzah is actually two different phasers, side by side in one pedal. Zelzah’s 4-stage side gives you a wide array of classic tones ranging from phasing to vibrato and more, while the 6-stage side provides phasing, flanging, chorus, and all points in between. Dial in a chorus on one side and barber pole phaser on other, or a phaser on one side and tremolo on the other. Use the two sides independently or together in a variety of configurations. Zelzah may become the only modulation pedal you keep on your board.
Features
Two independent effects that can be configured and controlled separately and used one at a time or simultaneously in series, parallel, or split configurations
Vintage 4-stage phaser with three phaser sweep modes: classic, barber, and envelope
New 6-stage phaser algorithm with a continuous range from classic pure 6-stage phasing to flanging to chorus, all with adjustable resonance
True stereo operation
All controls are carefully voiced to produce musically useful sounds at any setting
Adjustable input level switch to allow for both instrument and line level signals
Selectable Buffered or True Bypass
Full featured MIDI implementation via TRS or USB supporting MIDI CCs, MIDI clock sync, access to 300 preset locations
Strong and lightweight anodized dark purple aluminum chassis
Specs
I/O and SWITCHES
High impedance ultra low-noise discrete Class A JFET TRS stereo input
Low impedance independent TS stereo outputs
Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection
USB jack for controlling via MIDI from a computer or for performing firmware updates
Independent on/off footswitch for each phaser
AUDIO QUALITY
Premium JFET analog front end
Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
480MHz ARM Superscalar processor
32-bit floating point processing
Frequency response: 20Hz to 20kHz
Audio Input Impedance: 1M Ohm
Audio Output Impedance: 100 Ohm
OTHER
Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of current – sold separately
Dimensions (D x W x H): 11.4 cm x 10.2 cm x 4.4 cm / 4.5″ x 4″ x 1.75″
