Description

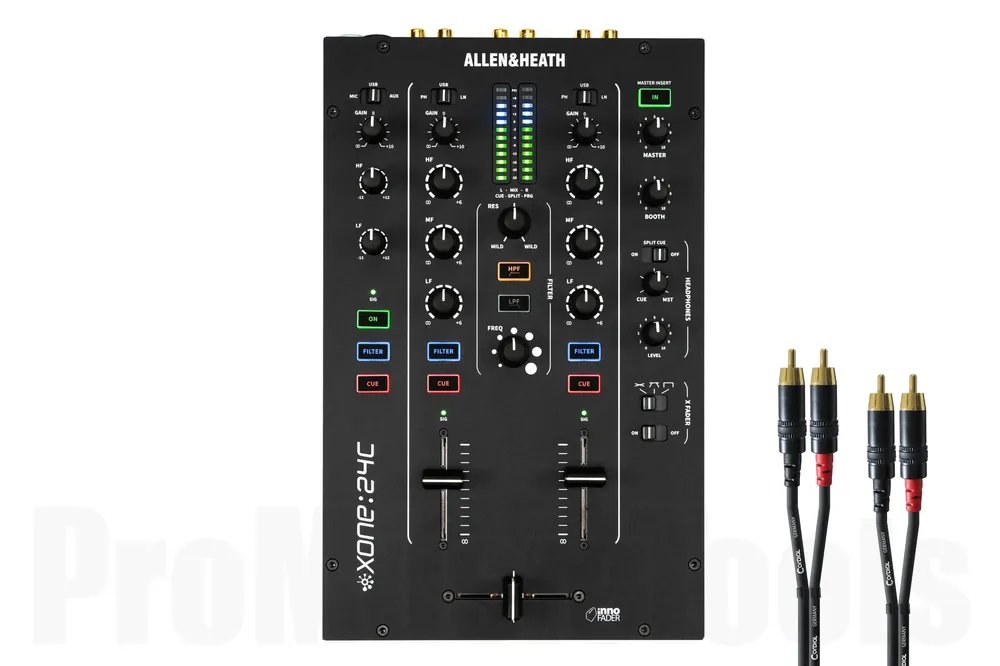

Xone:24C2+1 Channel Analogue DJ Mixer with Interface

Essential Tools. Professional Sound.

Xone:24C is a compact 2+1 channel hybrid DJ mixer that combines the unmistakable analogue Xone sound with flexible digital connectivity.

Built for smaller spaces, home setups, or mobile rigs, the Xone:24C delivers the same core tools found in flagship Xone mixersincluding the legendary Xone:VCF filter and Mini innoFADERin a streamlined format. Whether youre learning, performing, producing, or streaming, the Xone:24C provides a professional, no-compromise entry into the world of Xone.

Hybrid Workflow. Simplified.

Building on the foundation of the all-analogue Xone:24, the Xone:24C adds a premium 96kHz USB-C audio interface and powered USB hub for seamless integration with DVS, DAWs, or streaming platforms.

Three selectable modesStream, DAW, and DVS Promake setup quick and flexible, while MIDI output from key mixer controls allows tight hardware-software integration. The dual-port powered USB-C hub lets you connect controllers such as the Xone:K series or other class-compliant USB devices directly, creating a simple, central hub for your setup.

The Sound of Analogue

At the heart of the Xone:24C lies a meticulously engineered all-analogue signal path, delivering the clarity, warmth, and punch that define the Xone sound.

Low-noise, high-gain RIAA preamps preserve vinyl character, while pure analogue summing ensures depth and definition across the frequency spectrum. The 3-band isolator EQ allows expressive mix control and smooth transitions.

Legendary Xone Filter

Inspired by Allen & Heaths flagship mixers, the Xone:VCF filter delivers creative tone shaping with Low-Pass and High-Pass modes, full frequency sweep, and the signature resonance control from subtle to extreme.

Built to Perform

The Xone:24C is designed for reliability and precision. The Mini innoFADER crossfader ensures smooth, durable performance, while backlit controls, responsive RGB metering, and high-quality I/O make it a robust choice for professional or home use.

Flexible Effects Integration

A Master Insert / FX Loop allows easy connection of external processors or dynamic control hardware, giving you maximum flexibility for creative mixing or venue system management.

Technical Data

• Channels
  • 2 main channels + 1 mic/aux channel
  • Switchable Phono/Line inputs (per channel)
  • RIAA equalized phono preamps (low noise, high gain)
• Equaliser
  • 3-band isolator EQ (Total Kill)
  • +6 dB / – dB range
• Filter
  • Xone:VCF (Voltage Controlled Filter)
  • Selectable Low-Pass / High-Pass modes
  • Resonance control (MildWild)
  • Dedicated Filter On/Off switch
• Crossfader
  • Mini innoFADER (replaceable)
  • Assignable to CH1 / CH2 / Off
• Master Section
  • Master Insert / FX loop with switch
  • Balanced Master Out (XLR)
  • Booth Out (TRS)
  • Record Out (RCA)
  • Independent Cue section (latching/non-latching)
• Audio Interface
  • 24-bit / 96kHz class-compliant USB-C audio interface
  • 3 modes: Stream / DVS Pro / DAW
  • MIDI output from mixer controls
  • Dual-port powered USB-C hub for peripherals
• Connectivity
  • Phono/Line Inputs: 2 × RCA (per channel)
  • Mic/Aux Input: ¼ » TRS
  • Master Out: XLR balanced
  • Booth Out: ¼ » TRS
  • Record Out: RCA
  • FX Send/Return: ¼ » TRS
  • USB-C ports (Audio + Hub)
• Performance & Build
  • Analogue circuitry, low-noise design
  • RGB channel meters
  • Illuminated switches
  • Metal chassis
• Power
  • External 12V DC power supply
  • Power consumption: < 10 W
• Dimensions & Weight
  • Width: 245 mm
  • Depth: 358 mm
  • Height: 109 mm
  • Weight: 2.9 kg

Bundle Set incl. Cordia CFU 3 PP
