Description

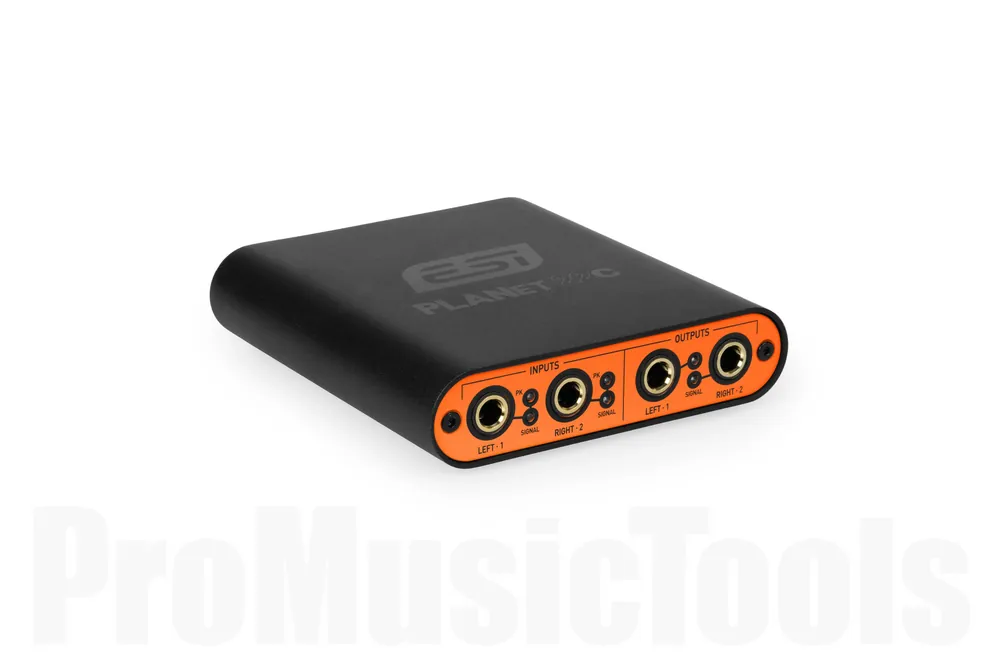

ESI planet 22c

• Burr-Brown 24-bit digital converter
• 2 x balanced analog inputs (-10 dBV /+4 dBu switchable) TRS, 6.3 mm
• Input level: +6dBV (-10dBV), +20dBu (+4dBu)
• Dynamic range: Analog input 110dBA
• Input impedance: 10 kOhm
• 2 x balanced analog outputs (-10 dBV /+4 dBu switchable) TRS, 6.3 mm
• Output level: +6dBV (-10 dBV), +20dBu (+4 dBu)
• Dynamic range: Analog output 120dBA
• Output impedance: 110 ohms
• Sample rate 44.1, 48, 88.2 and 96 kHz at 24 bits
• Latency up to 1 ms
• Frequency response: 20Hz to 20kHz +/-0.05dB
• Power supply: external DC power supply or PoE (Power over Ethernet)
• Dimensions (WTH): 110 x 110 x 25mm
• Weight: 240g
• System requirements: Windows 7/8/10, Mac OS X 10.7 (or newer)
