Description

Teenage Engineering TX-6 – ultra-portable pro-mixer and audio interface

TX6 is Teenage Engineering´s ultra-portable, battery-powered mixer and multi-channel audio interface, comparable to larger units, but with even more tech packed into one sturdy little machine. Mix 6 stereo input channels, use tempo sync, discover the internal synthesizer and sequencer or use the built-in tuner. MFi compatibility even lets you connect to your iOS devices.

The TX-6 is the first portable pro-mixer that can be used as a multi-functional 24-bit 48kHz audio interface that has an instrument tuner, built-in digital FX, synthesizer and drum machine. The TX-6 can be connected to your DAW for 12 channel multitrack recordings.

The TX-6 portable mixer is part of to the Teenage Engineering Field system. Combined with the OP-1 Field, you get an incredibly powerful and ultra-portable recording and performance system.

Main Features:

• Ultra-portable professional mixer
• 6 stereo inputs
• 3 stereo outputs (main / cue / aux)
• 32-bit 12-ch USB audio interface
• 3 band equalizer
• Low & high-pass filter
• 2 stereo multi-effect processors
• Compressor
• Limiter
• Crossfader mode
• MIDI via USB-C and Bluetooth LE
• Onboard tuner
• Onboard synthesizer with sequencer
• OLED display 64×48 pixels
• Battery with up to 7 hours capacity
• iPhone compatible
• Audio Inputs: Impedance 10 kOhm
• Analog Gain 0 – 42 dB
• Max Level: 8 dBu, 2 Vrms
• AD Converter: TLV320ADC3140 burr-brown
• SNR: ~ 102 dBA
• Audio Out (main, aux):
• Max Level : 8 dBu, 2 Vrms
• DA converter: Cirrus Logic Masterhifi CS43131
• SNR:> 120 dBA
• Audio Out (cue):
• Max Level 2 dBu, 1 Vrms
• DA-converter: Cirrus Logic CS47L35
• SNR:> 110 dBA
• Audio connectors: 3.5mm stereo jack
• Dimensions: 62x90x23 mm (WxHxD)
• Weight: 145 g

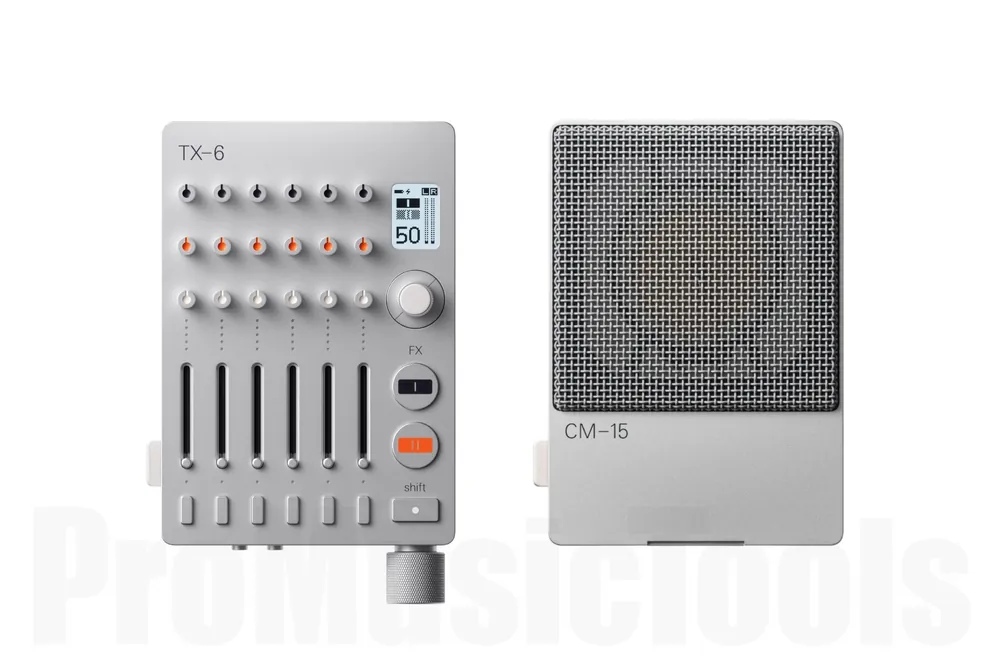

Bundle incl. Teenage Engineering CM-15
