Description

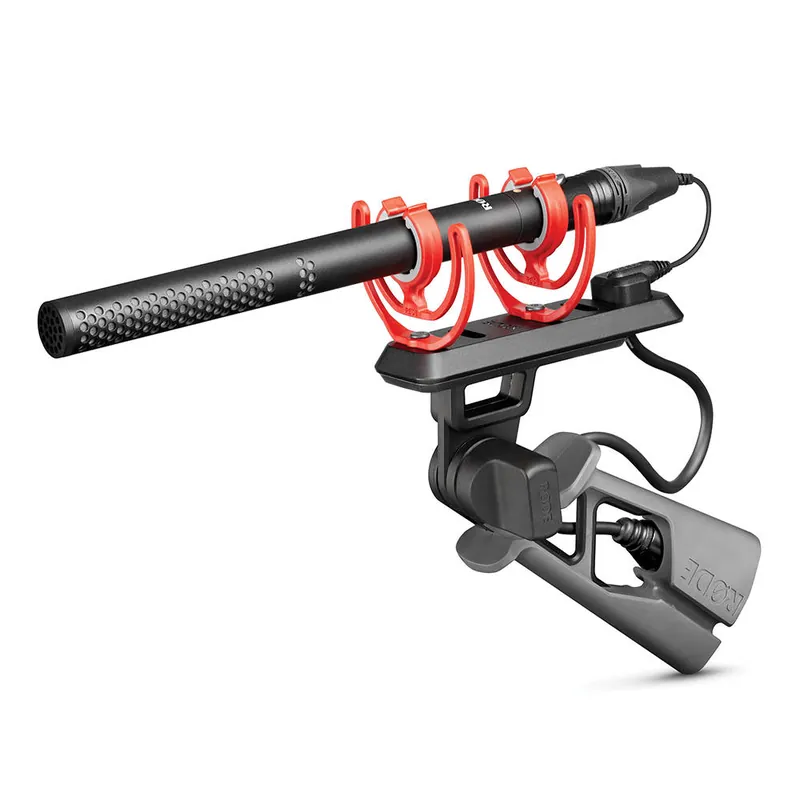

The NTG5 is a short, ultra-lightweight shotgun microphone ideal for use in the most demanding recording applications. Featuring a revolutionary acoustic design with circular ports replacing the linear slots found in other shotgun mics, it offers unmatched transparency and a more natural, uncoloured sound. Combined with a tightly controlled frequency response, smooth off-axis response, and very low self-noise (just 10dBA), the NTG5 sounds spectacular in a wide variety of applications, particularly location recording and demanding filmmaking scenarios where superlative audio is the imperative. No excuses.
The NTG5 is a boom operator’s dream, weighing a mere 76g and measuring just over 20cm, making it ideal for use on long, demanding shoots. It also features RF-bias circuitry to ensure reliable performance in adverse environments, with excellent resistance to high humidity, severe cold, damp, and dust. The perfect location recording mic.
Key Features
Revolutionary acoustic design, delivering a natural, uncoloured sound.
Extremely lightweight (just 76g), and short in length (just 203mm)
Tailored frequency response and very low self-noise of just 10dBA
Highly directional supercardioid polar pattern and smooth off-axis response
RF-bias technology and conformal coating ensure superior performance in adverse environmental conditions
Comes in a complete location recording kit with the new WS10 windshield for outdoor and high wind environments, PG2-R pistol grip and other accessories
NTG5 Recording Kit Includes:
– 1 x NTG5 Microphone
– PG2-R Grip
– RM5 Microphone Clip
– PG2-R Pro Cable
– WS10 Windshield
– Foam Windshield
– Small Zippered Pouch
Specs
Acoustic Principle: RF-bias condenser
Active Electronics: RF-bias demodulation
Polar Pattern: Supercardioid shotgun
Frequency Range: 20 Hz – 20 kHz
Frequency Response: 80 Hz – 20 kHz +/-3 dB
Output Impedance: 25
Signal to noise Ratio: 84 dB
Equivalent Noise: 10 dB SPL (A-weighted, as per IEC651)
Input SPL @ 1% THD: 130 dB SPL (1kHz @ 1% THD, 600load)
Power Requirements: 2 mA @ 48V phantom power
Sensitivity: -23.5 dB re. 1 Volt/Pascal or better (66 mV @ 94 dB SPL @ 1 kHz)
Dimensions (L x W x H) NTG5: 203 x 19 mm
Dimensions (L x W x H) PG2-R: 117 x 60 x 240 mm
Weight NTG5: 76g
Weight PG2-R: 224g
