Description

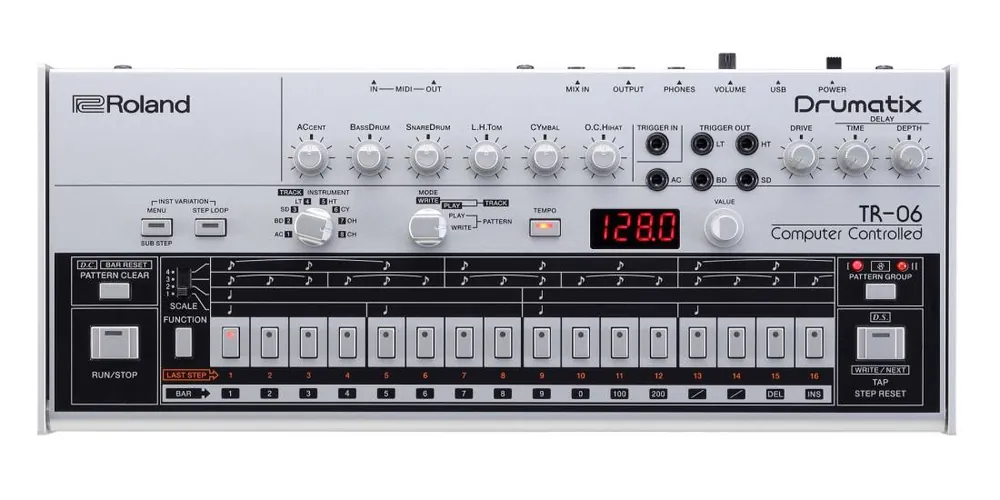

The TR-06 is a detailed replica of the classic Roland TR-606 – with some major modern upgrades. This new Roland Boutique version has the distinctive tone and iconic look of the original, with more sound-shaping options, innovative sequencing capabilities, and an array of triggers for driving modular gear.
Advanced sequencer.
Like the original, the step sequencer in the TR-06 is familiar and straightforward, so you can bang out any type of beat quickly and easily. And now it’s been updated with advanced features like adjustable sub-steps for ratcheted parts, step-loop for instant pattern slicing, and per-step probability for beats that never get boring.
Modular friendly.
Many modular and tabletop rigs are missing a good drum sequencer that’s convenient and easy to use. The TR-06 has five trigger outs and a trigger in, so it’s easy to interface with other gear, sparking new ideas and creative possibilities. Sequencing is fast and fluid, and you can mix and layer your external modules with the TR-06’s internal sounds for massive rhythmic sequences.
Built tough and ready for anything.
Like other Roland Boutiques, the TR-06 is sturdy and well-constructed with a solid metal top and a color-matched case with three tilt options. It’s a high-quality USB audio interface for quick and easy recording with your computer and can run on standard AA batteries for hours of uninhibited jamming. It even has a built-in speaker, because you never know what life might throw your way.
Hardware meets software.
Pair the TR-06 with the TR-606 Software Rhythm Composer available on Roland Cloud and enjoy the benefits of easy hardware and software integration. The TR-606 plug-in has expanded sequencing capabilities, and the TR-06’s knobs are pre-mapped for intuitive, hands-on workflow.
TR-06 Features
Detailed recreation of the vintage Roland TR-606 using Analog Circuit Behavior (ACB) modeling
Authentic sound and iconic look of the original
Expanded sound-shaping options with tuning, decay, pan, gain, and more
Onboard compressor, delay, and overdrive effects
Advanced sequencer with sub-steps, probability, and step-loop
Five trigger outputs and one trigger input for easy integration with modular and other gear
Colour-matched DK-01 case with three tilt options
Sturdy and portable with solid construction and a metal top
Runs on four AA batteries or USB bus power
Specs
User Memory
Patterns: 128 (16 patterns x 8 banks)
Tracks: 8
Steps: 32 steps
Sequencer Functions
STEP LOOP
SUBSTEP
FLAM
INTRO / FILL IN
PROBABILITY
SUBSTEP PROBABILITY
MASTER PROBABILITY
Instruments
BD: BASS DRUM*
SD: SNARE DRUM*
LT: LOW TOM*
HT: HI TOM*
CY: CYMBAL*
OH: OPEN HI HAT
CH: CLOSED HI HAT
*Variation sounds included
Effects
Compressor
Delay Effects: DELAY, PAN DELAY, TAPE-ECHO, REVERB, FLANGER, SIDE BAND FILTER
Drive Effects: SATURATOR, BIT CRUSHER, DISTORTION, LPF/HPF
Controllers
VOLUME knob
RUN/STOP button
PATTERN CLEAR button
MENU/SUB STEP button
STEP LOOP button
FUNCTION button
TEMPO button
STEP buttons (1-16)
PATTERN GROUP button and indicators
TAP/STEP RESET button
SCALE selector switch
INSTRUMENT selector knob
MODE selector knob
VALUE knob
Instrument Level knobs (AC, BD, SD, LT/HT, CY, OH/CH)
Effect knobs (DRIVE, TIME, DEPTH)
Indicators
7 segments, 4 characters (LED)
Connectors
TRIGGER IN jack: mono miniature phone type
TRIGGER OUT jack x 5 (AC, BD, SD, LT, HT): mono miniature phone type
PHONES jack: stereo miniature phone type
OUTPUT jack: stereo miniature phone type
MIX IN jack: stereo miniature phone type
MIDI (IN, OUT) connectors
USB port: Micro-B type (Audio, MIDI)
Power Supply
Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB bus power
Current Draw: 500 mA (USB bus power)
Expected battery life under continuous use
Rechargeable Ni-MH battery: Approx. 5 hours
*This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Dimensions (including Boutique Dock): 308 (W) x 130 (D) x 52 (H) mm / 12-1/8 (W) x 5-1/8 (D) x 2-1/16 (H) inches
Weight (including batteries and Boutique Dock): 1.2 kg / 2 lbs 11 oz
Accessories:
Boutique Dock: DK-01 (Silver)
Owner’s Manual
DK-01 Owner’s Manual
Leaflet « USING THE UNIT SAFELY »
Alkaline battery (AA, LR6) x 4
