Description

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.
Receive state-of-the-art live sound featuring Sennheiser’s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
Features
Digital wireless eliminates noise, interference and static bursts
UHF transmission greatly enhances range, reliability and scalability
Mobile App streamlines setup and operation and eliminates complicated menus
Automated setup creates reliable connections with minimal time and effort
Up to 2,240 selectable frequencies
Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
56 MHz Bandwidth will allow for up to 90 channels
Preserves every detail of even the most dynamic per formances with 134 dB transmitter dynamic range

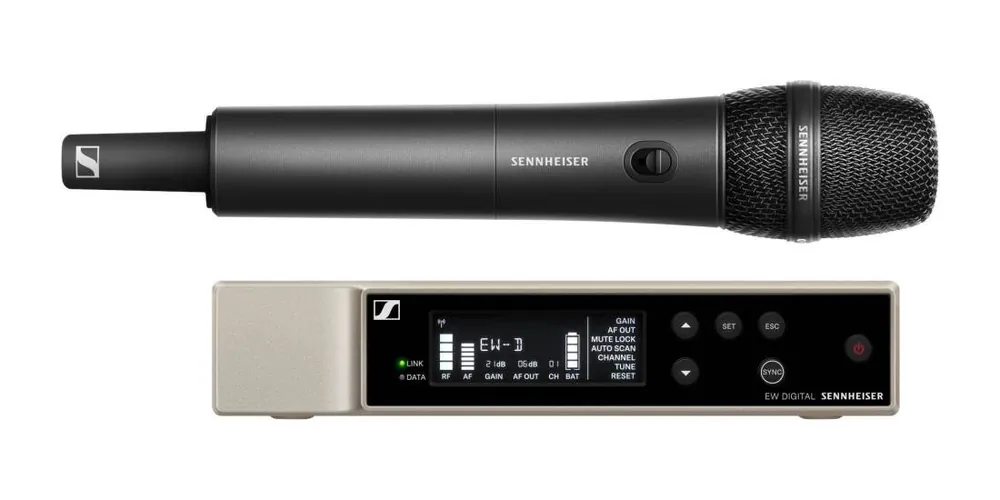

Set Includes
EW-D EM rack receiver
EW-D SKM-S handheld transmitter
MMD 835 microphone module
MZQ 1 microphone clamp
2 rod antennas
Power supply with country adapters
Rackmount set
Specifications
EW-D SKM-S Handheld Transmitter
Input voltage: 2.0 – 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack (not included)
Occupied bandwidth: 200 kHz
Transmit power (radiated):
Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions: 50 x 268 mm (incl. MMD 835 microphone module) / 40 x 200 mm (without microphone module)
Weight (without batteries) approx. 304 g (incl. MMD 835 microphone module)
MMD 835 (Microphone Module)
Transducer principle: dynamic
Sensitivity: 2.1 mV/Pa
Sound pressure level: 154 dB SPL
Pick-up pattern: cardioid
EW-D EM (Rack Receiver)
Input voltage: 11 – 13 V
Input current: < /= 300 mA
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (without antennas and power supply)
