Description

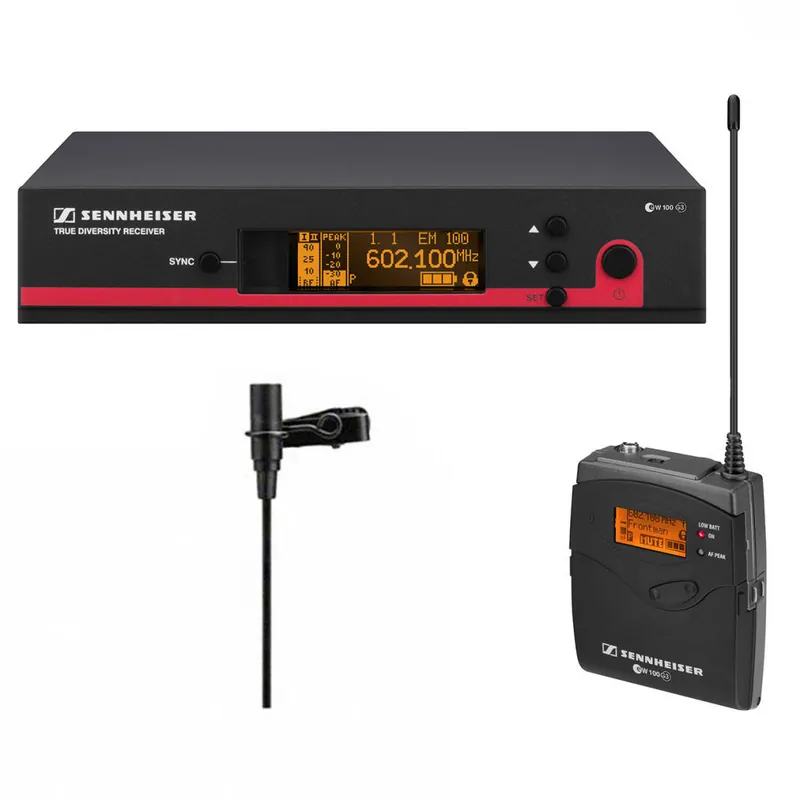

G3 Evolution Series Wireless Set includes EM 100 G3 adaptive diversity receiver, SK 100 G3 bodypack transmitter, and ME 2 clip-on microphone.
Make your presentations come to life. The included omni-directional microphone provides natural speech reproduction while remaining inconspicuously small. The bodypack transmitter has a rechargeable battery option so you can concentrate on your presentation – not on purchasing batteries. Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.
Features

• Sturdy metal housing (transmitter and receiver)
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 12 compatible frequencies
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Increased range for audio sensitivity
• Wireless synchronization of transmitters via infrared interface
• User-friendly menu operation with more control options
• Illuminated graphic display (transmitter and receiver)
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter feature battery indicatation in 4 steps, also shown on receiver display
• Programmable Mute function
• Integrated Equalizer and Soundcheck mode
• Contacts for recharging BA 2015 accupack directly in the transmitter
• Wide range of accessories adapts the system to any requirement

What’s in the box?
(1) EM 100 G3 rack-mount receiver
(1) SK 100 G3 bodypack transmitter
(1) ME 2 clip-on microphone (omnidirectional pick-up pattern)
(1) NT 2 power supply unit
(2) antennas
(2) stacking elements
(2) AA batteries
Operating instructions
Specifications:
Receivers True Diversity
Dimensions 212 x 202 x 43 mm
Weight ~ 900 g
Antenna connector 2 BNC, 50
Transmitter
Dimensions 82 x 64 x 24 mm
Weight ~ 160 g
RF output power 30 mW
Compander HDX
Presets 12
Frequency response 25 – 18.000 Hz
Clip-on microphone
Microphone permanent polarized 130 dB(SPL) max.
Sound pressure level (SPL) 130 dB(SPL) max.
AF sensitivity 20 mV/Pa
