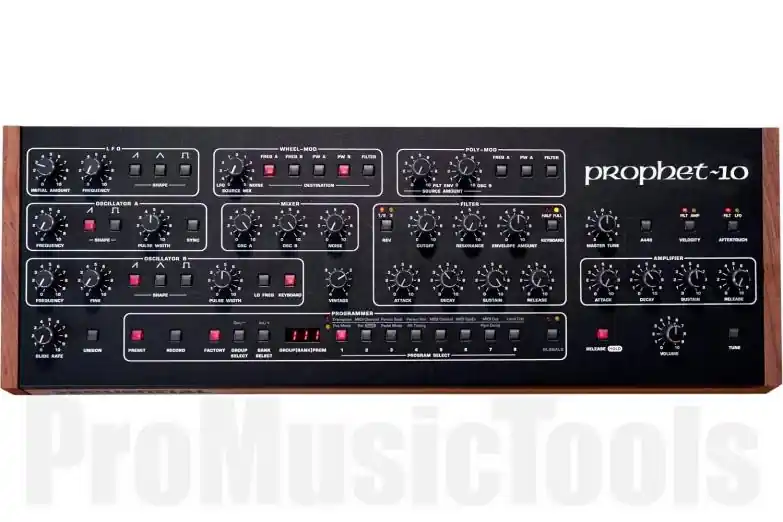

Sequential Prophet-10 Module

A synth legend on your desk
The Prophet-10 module brings ten voices of Sequential’s legendary analogue poly synthesiser to your desktop. Like the full-keyboard version, it’s « the best of all Prophet-5s » because it embodies all three Prophet-5 revisions – Rev1, Rev2 and Rev3 – using real Curtis analogue VCOs and filters (as in the Rev3) and new 2140 low-pass filters designed by Dave Rossum, like the 2040 filters he designed in the original Rev1 and Rev2. A Rev switch lets you choose between the two filter designs. It also adjusts the shape and response of the filter envelope to match the original Prophet Rev 1/2 and Rev 3 respectively. The result is the purest recreation of an analogue classic you could wish for, with the authentic, muscular sound of the original and the streetability of a modern instrument.

• Two authentic CEM 3340 voltage-controlled oscillators per voice.
• Simultaneously selectable waveforms. Oscillator A: sawtooth, pulse. Oscillator B: sawtooth, triangle, pulse.
• Pulse width per oscillator
• Hard sync: Oscillator A synchronised to oscillator B.
• Low frequency mode (oscillator B)
• Keyboard tracking on/off (oscillator B)
• MIXER
• Oscillator A portion
• Oscillator B portion
• White noise component
• LOW PASS FILTER
• Four-pole, resonant low-pass filter per voice
• Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3 filter
• Rev1/2 filter is a 2140 designed by Dave Rossum, the modern counterpart to the original 2040 filter found in the Prophet-5 Rev1 and Rev2
• Rev3 filter is a CEM 3320 designed by Doug Curtis.
• The filter can be set to self-oscillation with the Resonance control
• Keyboard tracking: off, half, full
• FILTER ENVELOPE
• Four-stage (ADSR) envelope generator
• Velocity modulation of the envelope amount
• AMPLIFIER ENVELOPE
• Four-stage (ADSR) envelope generator
• Velocity modulation of the envelope amount
• VINTAGE KNOBS
• AFTERTOUCH
• Channel (mono) aftertouch
• Targets: Filter cutoff frequency, LFO amount
• PERFORMANCE KNOB
• Unison mode (monophonic) with configurable number of voices, from one to all five voices and key modes
• Preset switch: when off, the front panel is live; what you see is what you hear
• 200 user and 200 factory programmes in 5 banks of 40 programmes each
• Direct programme access, including Prophet 5-style single-key access to the current set of 8 programmes
• Mono output (1 x 1/4″ jack)
• Headphone output (stereo, 1/4″ jack)
• MIDI inputs, outputs and Thru ports
• USB for bidirectional MIDI communication
• Control voltage input/output (1 x 1/4″ jack) 0- +5V input/output signal. Configured for 1 volt per octave operation.
• Gate input/output (1 x 1/4″ jack). Accepts a 1.5 to 15 volt on/off signal to control the envelopes of a single voice of the Prophet-5. Outputs a 15 volt on/off signal used to gate the envelopes of an external synthesiser.
• Low Pass Filter Cutoff Expression Pedal Input
• Expression pedal volume input
• Sustain footswitch input
• IEC mains connector for internal power supply
• Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; Prophet-5: 20 watts maximum power consumption.
• 20.75 L x 7.4 W x 3 H (52.70 cm x 18.8 cm x 7.62 cm).
• Road-ready all-steel cabinet with high-quality black walnut wood trim.
