Description

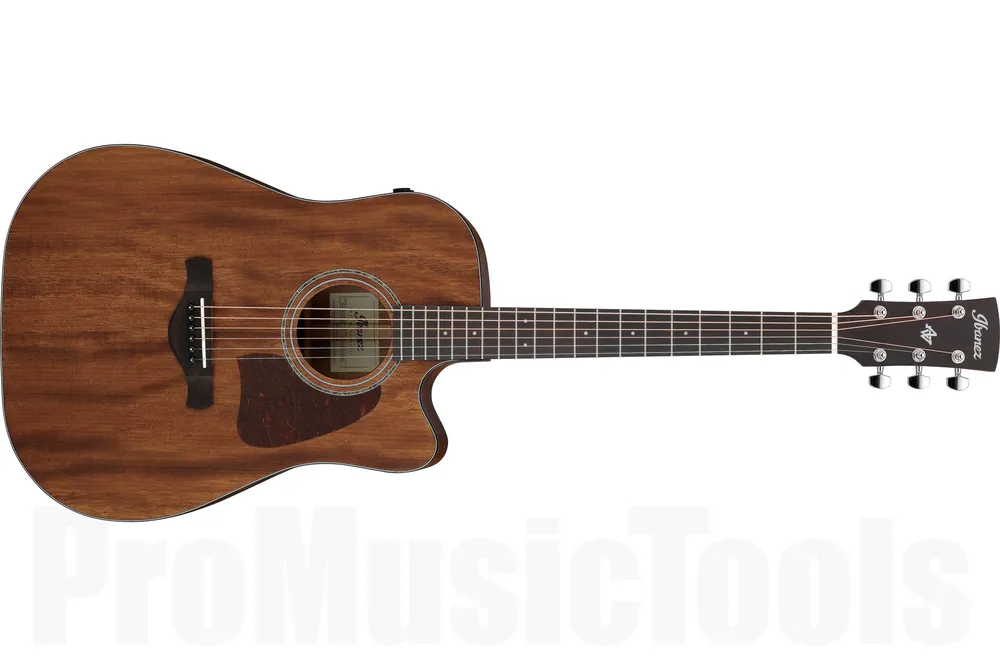

IbanezAW1040CE-OPN – Open Pore Natural Artwood
- Number of Strings: 6
- Neck Type: AW
- Neck Joint: Dovetail
- Neck Joint Position: 14th fret joint
- Neck Material: Nyatoh
- Neck finish: Satin Polyurethane
- Neck thickness (1st fret, mm): 21
- Neck thickness (7th fret, mm): 22
- Scale (mm): 651
- Nut width (inch): 1.7
- Nut width (mm): 43
- End width (mm): 55 at 14F
- Number of fret: 20
- Fretboard: Ovangkol
- Fretboard Radius (inch): 15.75
- Fretboard Radius (mm): 400
- Inlay: White dot
- Body Shape: Cutaway Dreadnought
- Body Top material: Solid Okoume
- Body Back material: Solid Okoume
- Body Depth: 5
- Body Width: 15.75
- Body Length: 20
- Soundhole Rosette: Abalone
- Body Depth@Joint: 100
- Body Depth@End: 125
- Body finish: Satin Polyurethane
- Total length (mm): 1036
- Body thickness (mm): 125
- Body length (mm): 506
- Body Width (mm): 400
- Bridge: Ovangkol
- Bridge pins: Ibanez Advantage
- Saddle material: Compensated Bone
- String spacing (mm): 11
- Nut: Bone
- Machine Head: Chrome Die-cast tuners (18:1 gear ratio)
- Other Pickup: Ibanez T-bar Undersaddle
- Preamp (for Acoustic): Ibanez Custom Electronics w/ Volume and Tone Control
- Controls, Pickup selector: 1 Volume, 1 Tone
- Output Jack: 1/4″ Endpin Jack
- String Gauges (from top to bottom): .012/.016/.024/.032/.042/.053
- Special Strings: D’Addario XTAPB1253
- Tuning (from top to bottom): 1E,2B,3G,4D,5A,6E
- Recommended Case: FS40DA
- Recommended Bag: IAB540-BK
- Other item(s) included: Hex wrench, Bridge pin
- Batteries Required: 9V x1
