Description

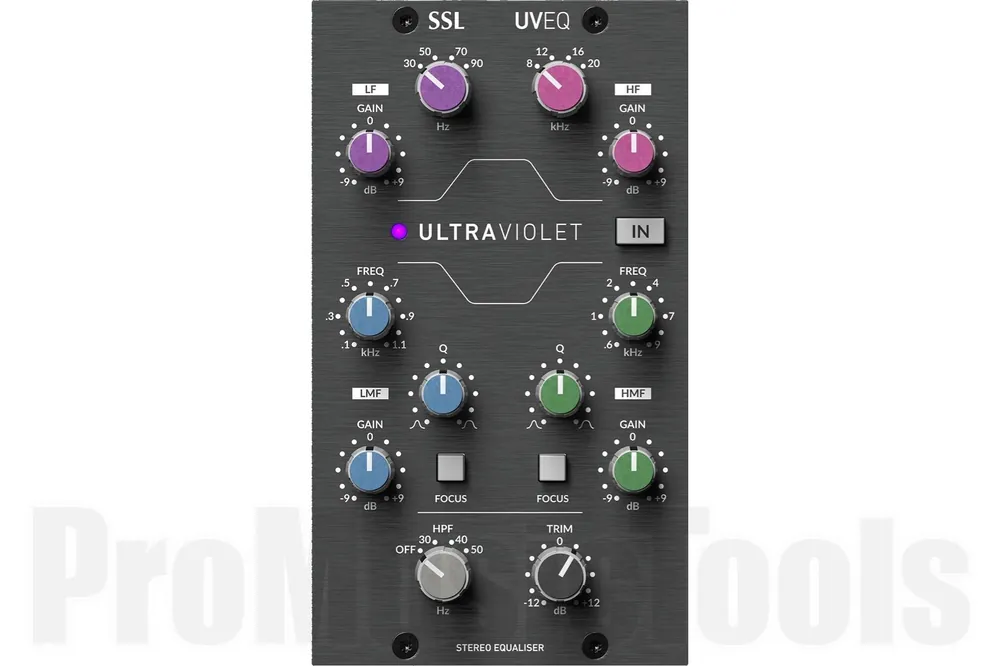

SSL 500 UltraViolet EQ4-Band Equalizer for API-500 series

The SSL UltraViolet Stereo Equalizer from the 500 series is the perfect addition to the Stereo Bus Compressor. This is because the SSL Master Bus EQ has now found its way into the API 500 racks.

Why this EQ is called UltraViolet becomes clear when you take a closer look at the two sections. SSL has borrowed the Violet minimum phase EQ from the Fusion and added two official, fully parametric mid bands. Both bands have been equipped with the switchable FOCUS mode for precise sound processing. This enables targeted accentuation or elimination of certain frequencies by increasing both the filter quality (Q) and the gain range at the touch of a button.

This makes the SSL 500 UVEQ a highly effective professional master bus tool for demanding engineers.

• 4-Band Stereo Equalizer
• FUSION Violet High and Low Shelving EQ
• 2 fully parametric mid bands with ‘FOCUS’ mode
• Switchable high-pass filter (Off, 30, 40, 50Hz)
• Trim control for output level
• Technical data
• LF shelf EQ: +/- 9dB gain at 30, 50, 70, 90Hz
• HF shelf EQ: +/- 9dB gain at 8k, 12k, 16k and 20kHz
• HMF Parametric EQ: +/- 9dB gain at 400Hz-6kHz
• LMF Parametric EQ: +/- 9dB gain at 100Hz-1.1kHz
• FOCUS mode: Higher filter quality & gain range> +/- 9dB
• Gain Trim: +/- 12dB
