Description

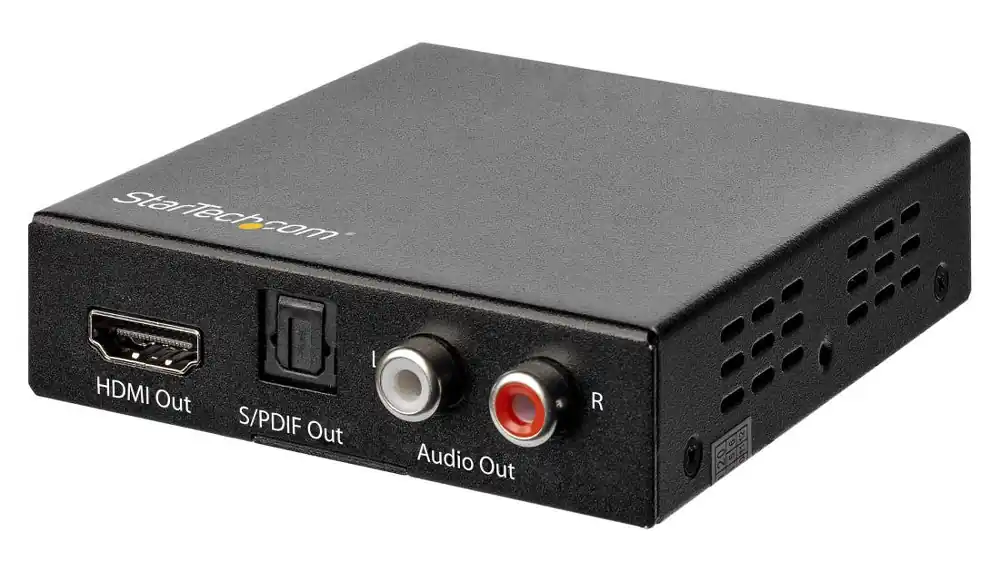

This 4K HDMI audio extractor lets you de-embed the audio from your HDMI video streams to create a distinct audio output that you can connect directly to a digital or analog audio device. Supporting HDMI 2.0 specifications, the de-embedder maintains 4K 60Hz resolutions to deliver a seamless video experience.
4K Video Performance
The HDMI sound splitter supports video resolutions up to 4K 60Hz (3840 x 2160) and high video bandwidth up to 18Gbps. It also supports High Dynamic Range (HDR) video pass-through, letting you enjoy lifelike images with incredible contrast, brightness and color, and greater luminosity compared to standard digital imaging.
Maximum Compatibility
Easily integrate HDMI 2.0 devices, such as your new 4K Blu-ray player, with your existing audio equipment or desktop speakers. The extractor isolates and extracts the audio signal from your HDMI cable and lets you output to digital optical audio or dual RCA audio devices . The integrated EDID management capabilities support 2-channel, 5.1-channel and pass-through audio modes.
The HDCP compliant HDMI audio de-embedder is compatible with dual-RCA composite adapters, giving you the flexibility to integrate the audio from your HDMI source into 3.5 mm audio applications using MU6MMRCA, MU3M
MRCA or MUFMRCA (sold separately).
Features
Separate and send the audio from a 4K HDMI video signal to dedicated audio devices
Supports the latest HDMI 2.0 specifications and HDR video pass-through
Hassle-free connection with digital optical audio or Dual RCA audio devices
Expand the capabilities of the audio extractor by converting to 3.5 mm audio
Integrated EDID management capabilities with passthrough settings for maximum compatibility
What’s Included
HDMI Audio Extractor
Universal Power Adapter (NA, EU, UK, ANZ)
Mounting Brackets / Mounting Screws
Specifications
Connector(s)
1 – Connector A: HDMI (19 pin)
1 – Connector B: HDMI (19 pin), RCA, Toslink (SPDIF, Optical)
Hardware
AV Input: HDMI
AV Output: 3.5 mm Audio, HDMI
Audio: Yes
Performance
Maximum Digital Resolutions: 4096 x 2160 (4K) @ 60Hz
Supported Resolutions
4096 x 2160 (4K) 60Hz
3840×2160 (4K) 60Hz
2560×1600 60Hz
1920×1200 60Hz
1920×1080 (1080p) 60Hz
1280×720 (720p) 60Hz
**Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
Wide Screen Supported: Yes
Audio Specifications
SPDIF: PCM 2.0 , Dolby Digital and DTS 5.1
RCA Output: 2 channel or Stereo
Power
Input Voltage: 100 – 240 AC
Input Current: 0.4 A
Output Voltage: 5 DC
Output Current: 1000 mA
Physical Characteristics
Material: Aluminum
Product Length: 3.5″ x 3.1 x 0.9″ (9 x 8 x 2.2 cm)
Weight: 7.3 oz (208 g)
