Description

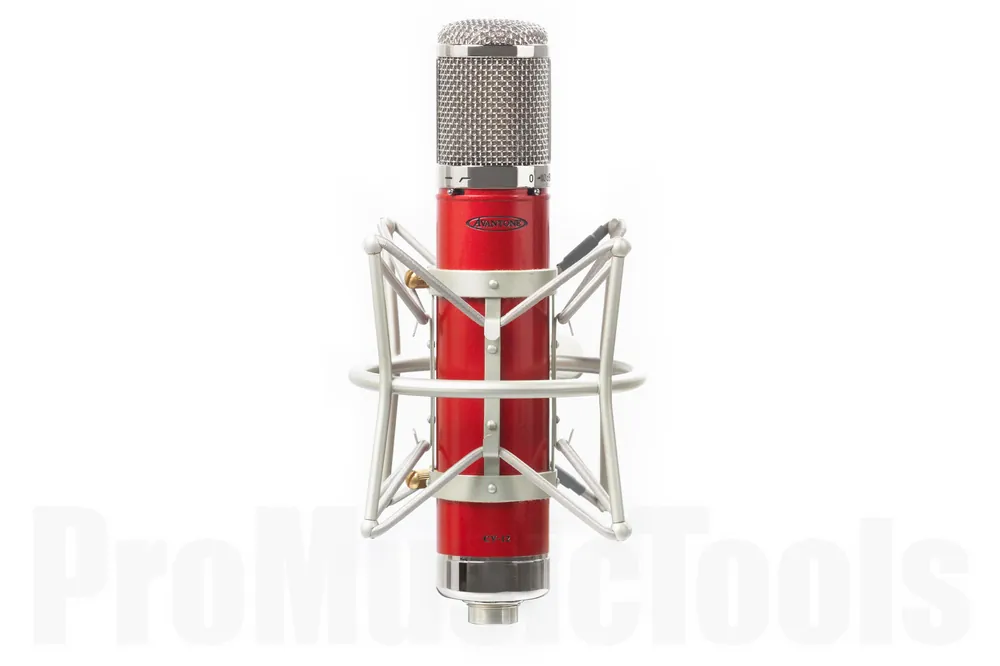

Avantone Pro – CV12 Multi-Pattern Large Capsule Tube Condenser
Specifications
- TYPE: Tube-Type True Condenser Microphone
- CAPSULE: Dual-sided 32mm center-terminated gold-sputtered Mylar (6 micron)
- POLAR PATTERNS: 9 patterns selectable at PS-12 power supply
- FREQUENCY RESPONSE: 20Hz – 20kHz +/- 3dB
- OUTPUT IMPEDANCE: <=250 Ohms / transformer isolated
- MAXIMUM SPL: 136dB (0.5% THD @1000Hz) 146dB with pad engaged
- EQUIVALENT NOISE LEVEL: <17dB
- S/N RATIO: 78dB
- SENSITIVITY: -35dB
- OUTPUT CONNECTOR: Male XLR 7 pin w/ special power supply & cables
- TUBE TYPE: 6072A (mil-spec). Lower noise than the more common 12AY7
- HIGH-PASS SWITCH: 80 Hz 6dB/octave Switch
- ATTENUATION SWITCH: -10dB Switch
- POWER REQUIREMENTS: Dedicated PS-12 Power Supply w/ selectable 115/230 VAC capability
- FINISH: Polished Nickel trim / Metallic Cabernet Red Body
- WEIGHT: .8 kgs / 1.8 lbs.
- DIMENSIONS: 237mm x 46mm / 9.5″ x 1.8″
