Description

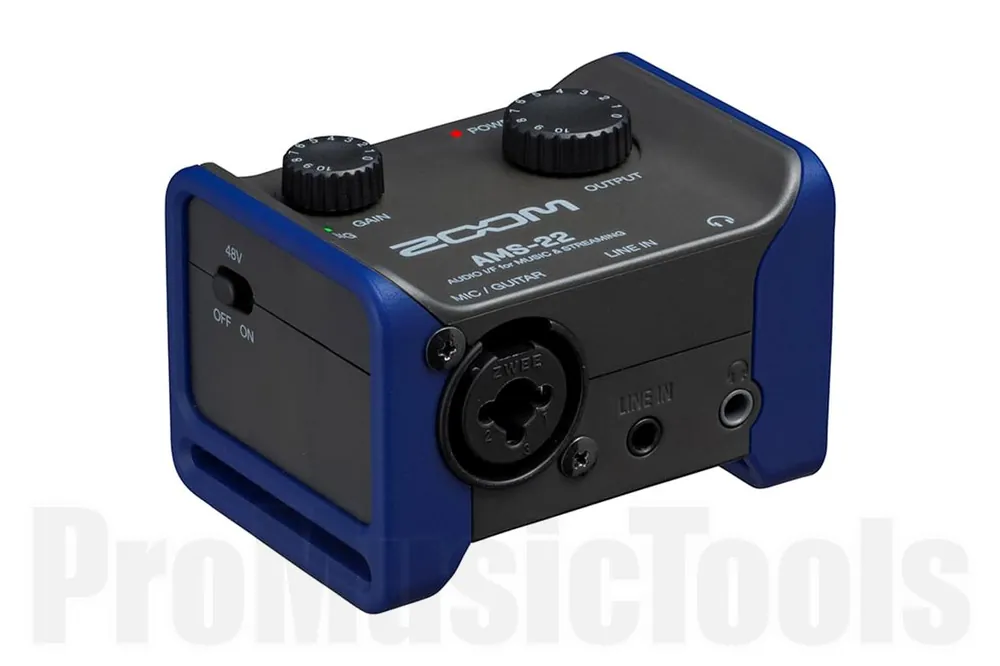

Zoom AMS-22Audio Interface

As the perfect solution for mobile recording and streaming, the AMS-22 offers an XLR/TRS combo input and a stereo line input. There is also a headphone output and two TRS outputs for connecting external monitors. Thanks to its physical switches, the AMS-22 offers a streaming solution that requires no additional software.

• 24-bit / 96 kHz
• Microphone and instrument input (XLR/TRS combo socket) with max +54 dB gain
• +48 V phantom power switchable
• Stereo line input (3.5 mm jack)
• Direct monitoring function
• Switchable loopback option
• Stereo headphone output (3.5 mm jack)
• Stereo line output (2 x 6.3 mm jack balanced)
• Compatible with Mac, PC, iOS and Android
• USB-C port for audio stream and power supply
• Separate USB-C port for power supply for mobile recording
• Dimensions (W x D x H): 68 x 57.7 x 46 mm
• Weight: 85 g
• Incl. quick start guide and USB-C cable
