Description

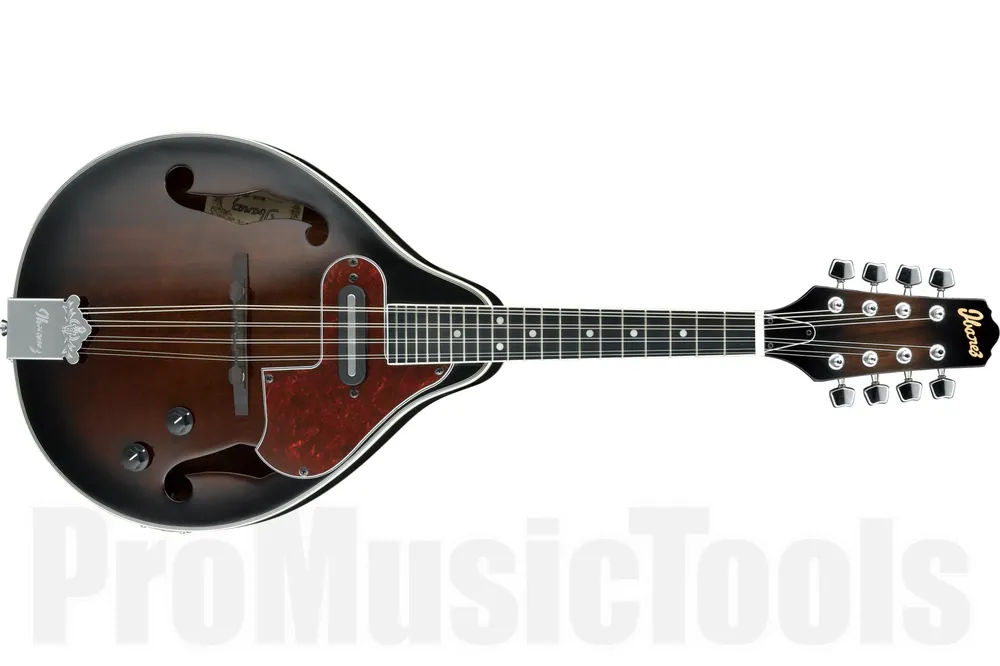

IbanezM510E-DVS – Dark Violin Sunburst High Gloss

• Neck Type: M
• Neck Joint: Dowel
• Neck Joint Position: 12th fret joint
• Neck Material: Okoume
• Neck finish: Gloss Polyurethane
• Neck thickness (1st fret, mm): 22
• Neck thickness (7th fret, mm): 24.5
• Scale (mm): 350
• Nut width (inch): 1.2
• Nut width (mm): 30
• End width (mm): 40 at 14F
• Number of fret: 20
• Fretboard: Purpleheart
• Fretboard Radius (mm): Flat
• Inlay: White dot
• Body Shape: A-style
• Body Top material: Spruce
• Body Back material: Sapele
• Body Depth: 2
• Body Width: 10.875
• Body Length: 13.625
• Body Depth@Joint: 48.5
• Body Depth@End: 48.5
• Body finish: Gloss Polyurethane
• Total length (mm): 684.2
• Body thickness (mm): 48.5
• Body length (mm): 344.2
• Body Width (mm): 273.4
• Bridge: Purpleheart
• Saddle material: Purpleheart
• String spacing (mm): 10
• Nut: Plastic
• Machine Head: Chrome Mandolin tuners
• Other Pickup: Magnetic single
• Controls, Pickup selector: 1 Volume, 1 Tone
• Output Jack: 1/4″ output
• String Gauges (from top to bottom): .010/.014/.024/.034
• Tuning (from top to bottom): 1E,2A,3D,4G
• Other item(s) included: Hex wrench
