Description

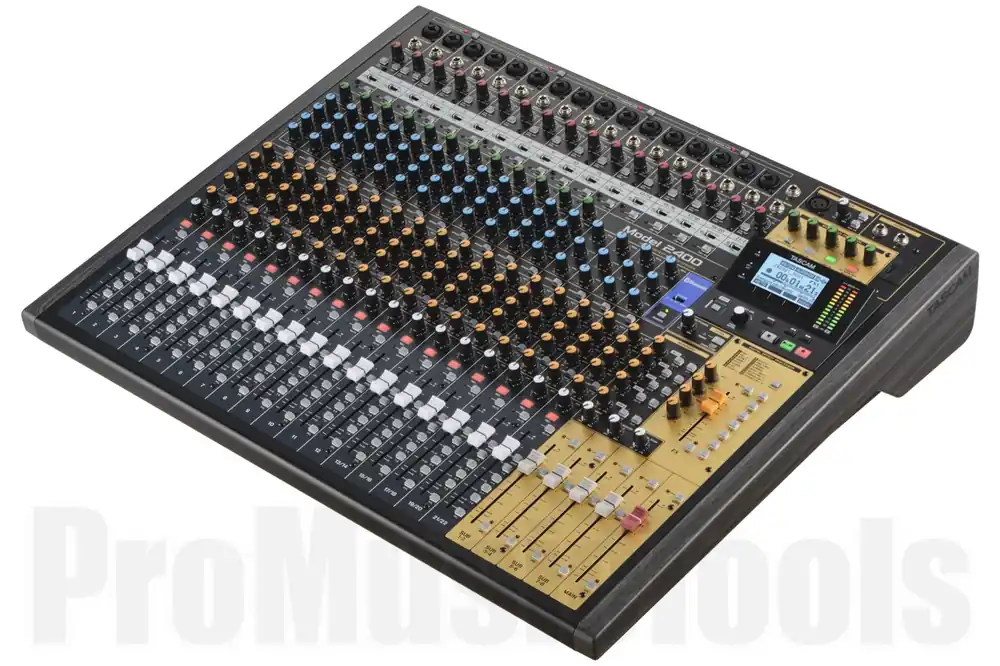

Tascam Model 240022-channel / 24-tracks recording mixer
22 channels, 24 tracks, one solution: from performance to recording, the Model 2400 sets new standards both in the studio and on stage. More aux sends, four stereo subgroups, MIDI/MTC and many other improved features make the Model 2400 the new flagship of Tascam’s Model series.
- Analogue mixing console with 22 inputs (22 line inputs, 16 microphone inputs)
- Built-in audio recorder for 24-track recording and playback (12 mono input channels, 5 stereo input channels plus stereo sum)
- USB audio interface with 24 inputs and 22 outputs
- 12 XLR microphone preamps with Tascam Ultra HDDA technology (channels 1-12)
- 5 aux sends (4 aux plus internal effect), 4 stereo subgroups, stereo sum
- MIDI in/out with MIDI synchronisation and audio click output with tempo control
- DAW control for transport and recording standby via HUI/MCU
- Special settings panel with level meters (meter bridge)
- Sends with selectable pre/post EQ routing for recording
- Channel compressor and EQ can be bypassed for MTR and USB return
- Phantom power (+48V) selectable in groups of 4 channels
- Insert Send & Return channels 1-12
- 100 Hz HighPass Filter (channels 1-12)
- 1-button compressor (channels 1-12)
- 3-band EQ (channels 1-12: tunable mids)
- 100 mm fader (channels 1-22, subgroups 1-4 and stereo sum)
- Digital 4-band EQ and compressor in the stereo sum
- Master-Insert for the stereo sum
- PFL/AFL switch with LED display in all input/output channels
- Stereo sum outputs via balanced XLR connectors; Sub 1-8, Aux 1-5 and Control Room outputs via 6.3 mm jack plugs
- 2 headphone outputs
- Talkback microphone input (XLR)
- Tascam effects processor with 16 studio-quality effects (reverb, delay, chorus, etc.) with fader control
- Bluetooth input (supports AAC and SBC codecs)
