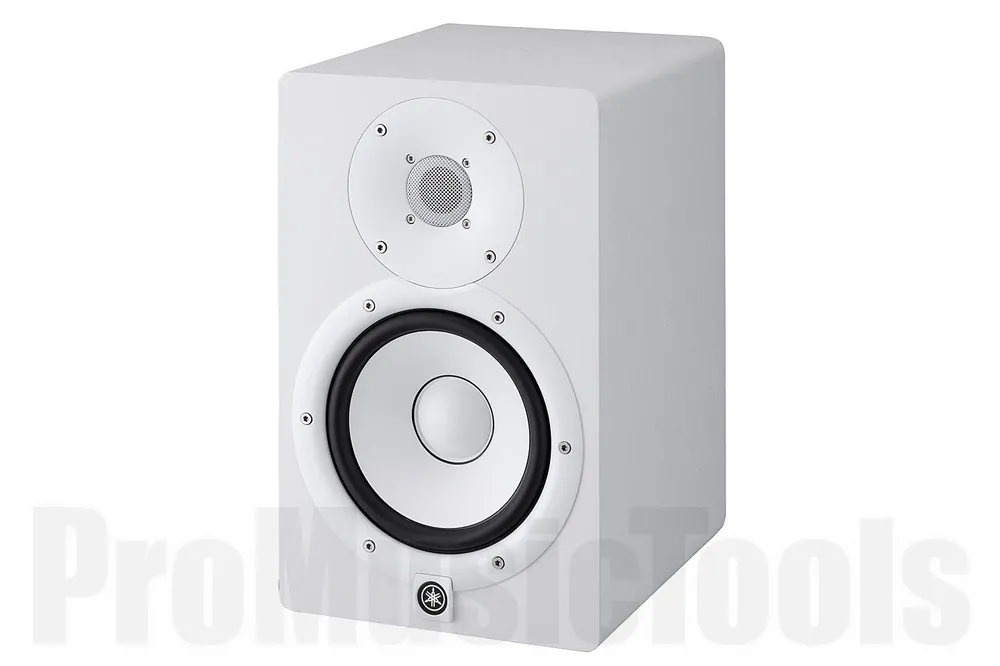

Yamaha HS7W

Active 2-way nearfield monitor

Yamaha’s new models share with their predecessors – the NS-10M, the MSP series and the first HS generation – a philosophy that puts sonic purity first. The HS Series features newly developed transducers that deliver astonishingly balanced reproduction over a wide frequency range. The response of the speaker magnets and the magnetic field they generate have been perfected and play a large part in a flawless, natural-sounding sound conversion.

Nearfield Monitor

• Construction: 2-way active
• LF driver: 1 x 6.5″.
• HF driver: 1
• Power amp output per channel: 60 W (LF), 35 W (HF)
• Amplifier class: Class-D
• Frequency response (+/-3 dB): 43 Hz – 30 kHz
• Maximum sound pressure level (SPL): no manufacturer’s specification
• Magnetically shielded: no
• XLR-In: yes
• 6.3 mm jack-in: yes
• 3.5 mm jack-in: no
• Cinch-In: no
• Other connections: none
• Digital inputs: no
• Bluetooth: no
• Manual frequency correction: yes
• Controls: Gain control, room control and high-trim switch, power on/off
• Power supply: 100 – 240 V AC, 50/60 Hz
• Dimensions: 210 x 332 x 284 mm
• Weight per speaker: 8.2 kg
• Cabinet colour: White
