Description

Designed from the ground up to deliver maximum performance, clarity and accuracy for home or project studios, the new Yorkville YSM Series powered monitors are priced to suit virtually any engineers budget.
Contoured MDF baffle housing the high quality custom soft dome tweeters and low frequency woofers used in the new YSM Series monitors are designed to minimize reflections improving phase response and providing a wider sweet spot in the listening position. Front facing ports used in the YSM Series monitor design solve the issues of bass coupling with back walls and corners which general false low frequency information in your mix, a common issue with competitive monitors that choose to use rear firing ports.
Compatible with virtually any source Yorkville YSM Series monitors have a widely variable input trim control for the balanced XLR / 1/4-inch combi-jack input capable of handling level from everything from computer soundcard and mixer outs. Four position high and low frequency trim controls (at -2, -1, 0 and +1.5dB) allow user adjustable EQ contour to compensate for speaker placement in less than perfect listening spaces.
Rock-solid 3/4-inch MDF cabinet construction with heavy internal bracing and ample internal dampening material reduces unwanted low frequency rumble ensures Yorkville YSM Series cabinets reproduce source material with near pinpoint accuracy and detail.
*Sold Individually*

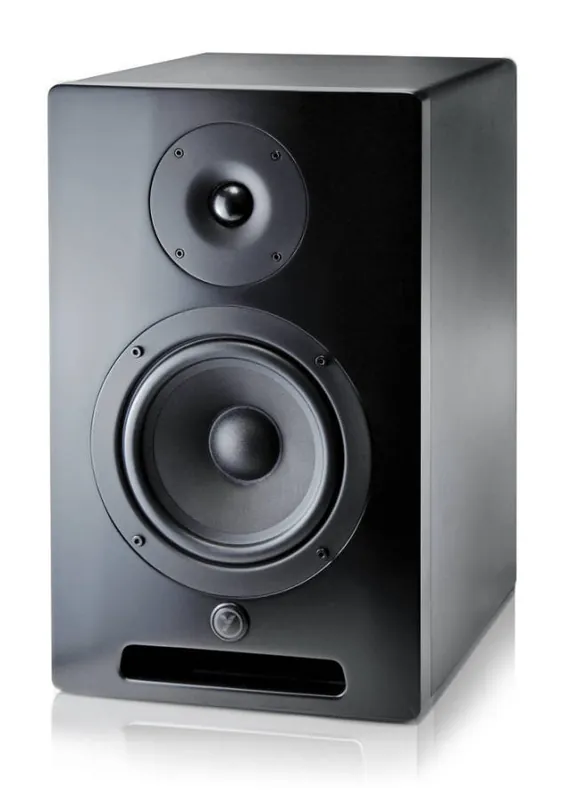

YSM6 Details
Model: YSM-6
Active or Passive: Active
Total Applied Power (Watts): 65
Configuration: Biamp
Max SPL: 105db
Frequency Response (Hz +/- 3db): 50Hz – 20kHz
Crossover Frequency (Hz): 2.6 kHz
HF Driver: Neo Soft Dome Ferro Fluid Cooled
HF Program Power (Watts): 20
HF Dispersion (H x V): 60
HF Protection: Thermal, Over Voltage
LF Drivers: 6.5″ Composite
LF Program Power (Watts): 45
LF Impedance (ohms): 4
LF Protection: Thermal, Over Voltage
Sheilding: Yes
HF Power Amplifier (Watts): 18
HF Amplifier Type: A/B
HF Distortion: 0.08
LF Power Amplifier (Watts): 50
LF Amplifier Type: A/B
LF Distortion: 0.02%
LF Processing: Analog
Cooling Scheme: Convection
Power Cable: Included
Power Switch: Front
Power Consumption (typ/max): 40/100 VA
Inputs – 1/4-inch x 1, XLR x 1
Input Sensitivity (Vrms Sine): 0.2
Level Controls: 1
EQ Controls: 2
Limiter: Yes
LED Indicators: Power On Front
Other Controls / Features: Base Foam Pad
Enclosure Materials: MDF
Baffle Material: MDF
Covering / Finish: Enamel
Dimensions (DWH xbackW, inches): 10 x 9.5 x 15
Dimensions (DWH xbackW, cm): 25.4 x 24.13 x 38.1
Weight (lbs/kg): 21 / 9.5
