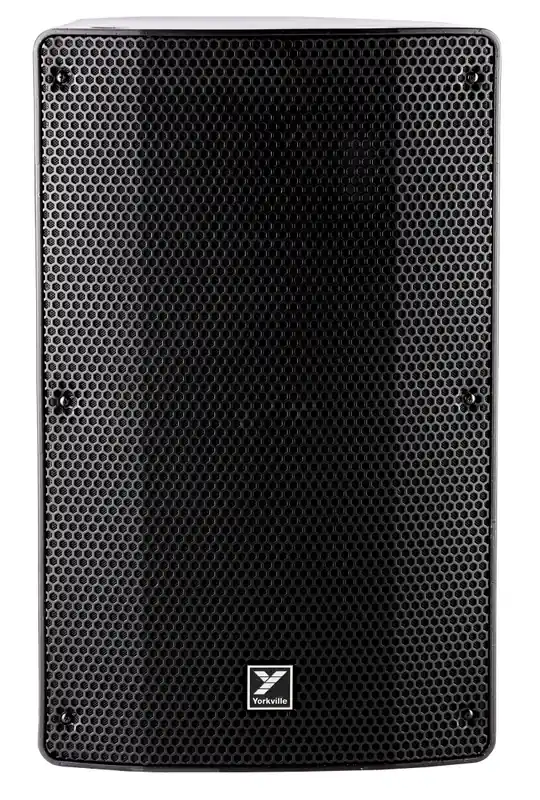

Description

The YXL cabinets use a single driver and 90 x 40 degree horn with a 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville’s reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge. They also include flypoints for permanent installation.
YXL12 Key Features
600 Watts (Program)
8 Ohms
12-inch woofer with 2-inch voice coil
1-inch compression driver
90 x 40 HF dispersion
Polypropylene cabinet construction
Specifications
System Type – Passive Loudspeaker
Active or Passive – Passive
Power Rating (Watts) – 600 Watts Program
Max SPL (dB) – 125dB Continuous
Frequency Response (Hz +/- 3dB) – 47 – 16k (Hz +/-3dB)
Dispersion (H x V) – 90 x 40
Crossover Frequency (Hz) – 1.6kHz
HF Horn – Integrated into Baffle
LF Driver(s) – 12-inch (2-inch voice coil)
Feet – Rubber
Bar Handles – 1 x Side / 1 x Back
Flying Hardware – 2 (Top) 1 Pullback – M8 Threading
Optional Flying Hardware – Yes
Enclosure Materials – Polypropylene, Metal grille
Baffle Material – Polypropylene
Grille – Powder Coated Steel with Grille Cloth
