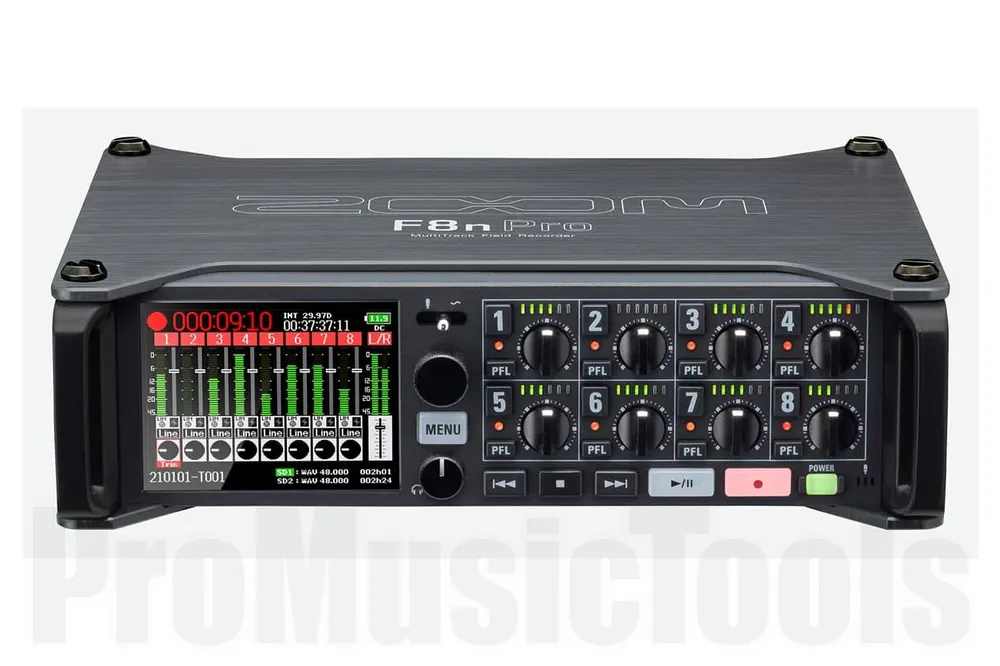

Zoom F8nProMultitrack Field-Recorder

Next generation recording – 32-bit float is the game changer. The F8n Pro uses dual A/D converter stages and professional preamps to record the highest quality audio – without having to adjust the pre-amplification! The F8n Pro records in BWF-compatible WAV format with up to 32 bit resolution and a sample rate of up to 192 kHz.

The F8n Pro offers three outputs for external devices, headphones and camera connection. With your headphones you can listen to the tracks pre- or postfader, check the levels and set the panorama of the signals. With 8 inputs and 10 tracks, the F8n Pro can record highly complex audio material and opens up new possibilities in post-production.

The F8n Pro offers flexible signal routing from all inputs to all outputs, phase reversal and mid-side decoding. It also offers high-pass filtration to reduce wind and other background noise. In addition, delays can be set up in the inputs and outputs.

• 8 inputs with XLR/TRS combo jacks (Mic/Line switchable)
• 32Bit Float Dual AD Converter (max 192kHz)
• No need to adjust microphone gain thanks to 32Bit resolution and high-quality microphone preamps with up to 75 dB gain and low noise (-127dB ON)
• Switchable phantom power (+24V / +48V)
• Switchable Ambisonics mode, MS decoder, high-pass filter and phase reversal
• Timecode input and output via BNC connectors (0.2 ppm in operation and up to 0.2 ppm after power off)
• Redundant recording to two SD/SDHC/SDXC cards (max 1TB)
• Simultaneous recording to SD card and computer via USB connection
• Operation as USB audio interface with 8 I/4 outputs
• Recording with maximum 32 bit/192 kHz and 47.952/48.048 kHz for HD video compatibility
• Three different options for power supply: 8 x AA batteries, DC power supply with Hirose connector 9-18V or 12 V AC power supply (batteries and DC power supply not included)
• Gain control with level indicator and PFL/solo switch per channel
• Compact and lightweight aluminium housing
• Illuminated 2.4″ full color LCD
• Compatible with ZOOM microphone capsules
• Remote control via « F8 Control App » for iOS and Android
• Two symmetric mini XLR main outputs: TA3
• Stereo headphone output: 3.5 mm jack
• Dimensions (W x D x H): 178.2 x 140.3 x 54.3 mm
• Weight: 1200 g
• Including ZOOM AD-19 DC 12 V power supply
