Description

The 4K Camera for your Look and Sound

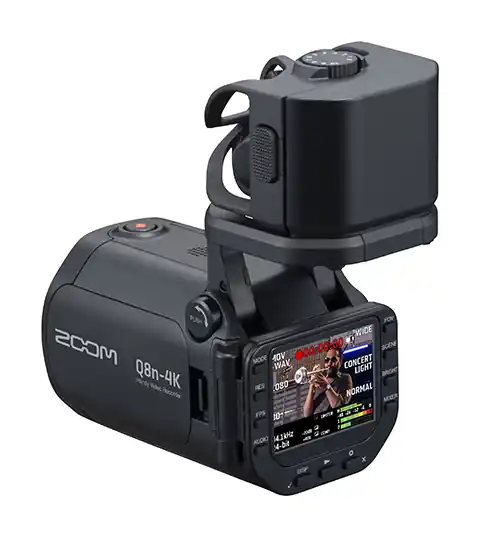

The Zoom Q8n-4K is designed to capture professional-grade audio with 4K video in a versatile, all-in-one handy recorder. The Q8n-4K gives you the same high-quality audio formats as Zoom’s dedicated audio recorders. It is the perfect video production and livestreaming solution for today’s musicians, filmmakers, podcasters and more.
PRODUCTION FEATURES
Video Production beyond the limits of a Smartphone – The Q8n-4K is designed for creators to showcase their best sound and look, elevating your videos with four audio tracks, along with 4K UHD video.
Light weight, light on the wallet – Compared to a mirrorless or DSLR, this camera’s size is meant to seamlessly fit into your production while its price ensures that it fits into your budget.
4-Track minded – With the Zoom X/Y mic capsule and two XLR inputs, you can capture up to four tracks of simultaneous, crystal-clear audio.
In the Mix – Capture every instrument and voice of your band’s performances by running the main outputs of a mixing board right to your Q8n-4K.
CREATOR SET-UP
Capturing Performances – Take advantage of the Q8n-4K’s compact size, vivid imagery, and high-quality audio, recording your genuine look and sound during live or studio performances.
Interchangeable Mic Capsules
Record in 4K resolution at 30fps. With the F2.8/150° wide-angle lens, five field of view (FOV) settings, and brightness adjustments, the Q8n-4K produces vivid video quality at every shoot.
Easily connect via USB to your computer and stream to your favourite platforms.
Get the right look in any setting using Scene presets for Indoor, Outdoor, Nighttime and Concert Lighting. Alternatively, the Auto setting will optimize lighting based on your environment.
Use the stereo headphone output jack and on-screen level meters to monitor your sound.
The Q8n-4K is compact and mobile, perfect for run-and-gun shoots while operating handheld or with a gimble.
Selfie Mode – Be the star of your own production. Use the flip-out screen to view yourself while operating the Q8n-4K.
Choose the right power source for your shoot environment by using the camera’s rechargeable Li-ion battery, charge via USB or with an optional AC adapter, all while recording to a mini-SD card up to 512GB.
The Q8n Control app for iOS allows you to remotely monitor your levels as well as start and stop recording.
Q8N-4K Features & Specs
4K video and 4-track audio recorder
High-quality 150° wide-angle lens with 5 field of views
Interchangeable Zoom mic capsule system
Two XLR mic/line input (with phantom power)
Full-color flip LCD for self-movie capture
USB interface for livestreaming / data transfer
iOS/Android apps for remote control*
*Optional BTA-1 Bluetooth adapter required
In the Box:
– Q8n-4K Handy Video Recorder
– BT-03 Battery
– Lens Cover
– Lens Hood
– Windscreen
– USB Cable
– Quick Guide
Specs
Image Sensor: 1/2.3″ 16 M-pixel CMOS sensor
Lens: F 2.8, 150 FOV
Video Format: MPEG-4 AVC/H.264 (MOV)
Video Resolutions:
4K/30, 25, 24
1080/60, 50, 30, 25, 24
720/60, 50, 30, 25, 24
Audio Formats
WAV:
96 kHz/24-bit, 16-bit
48 kHz/24-bit, 16-bit
44.1 kHz/24-bit, 16-bit
Audio Functions
LoCut: O / 80 Hz / 120 Hz / 160 Hz / 200 Hz / 240 Hz
Fx: O / Limiter / Compressor / Leveler / DeEsser / NoiseGate
Level:dB – +10 dB
Pan: L100 – Center – R100
Delay: 0 ms, 10 ms to 300 ms (only during web camera use)
Direct Monitor: On/O (only during web camera and USB mic
Image Functions
FOV: 5 steps
Scene: AUTO / INDOOR / OUTDOOR / NIGHT / CONCERT LIGHT
Self Timer: OFF / 3 sec / 5 sec / 10 sec
Bright: LOW / NORMAL / HIGH
Audio Inputs: MIC
MIC:
XY Mic: XYQ-8 (120 XY stereo mic
Maximum sound pressure: 120 dBSPL
Input gain:dB – 43 dB
INPUT 1/2
Input connector: XLR
Input gain (PAD OFF):dB 55 dB
Input impedance : 1.8 k or more
Maximum permissible input level: +26 dBu (PAD ON)
Phantom power: +12 V / +24 V / +48 V
Equivalent input noise: 120 dBu or less
Output Connector
Combined line/headphone stereo mini jack
HDMI micro Type D
Built-in Speaker: 300 mW 8mono speaker
Recording Media: microSD / microSDHC / microSDXC (512 GB maximum)
USB
USB TYPE-C < WEBCAM> CLASS: UVC 1.0 +
UAC 1.0 FORMATS: 720 P, 1080 P WVGA video
48 KHZ/16-Bit Audio < CARD READER>
UP Stereo
Class: USB MASS STORAGE < USB MIC> Up: 2 ch, Down: 2 ch
Class: UAC 1.0, FORMAT: 44.1 KHZ/16-BIT
NOTE: Card Reader and USB mic functions support iOS devices
NOTE: Supports USB BUS Power operation
NOTE: Use USB cable that supports data transfer: remote ZOOM BTA-1 or other dedicated wireless adapter.
Power
Lithium-ion battery: DC 4.2 V maximum voltage
AC adapter (ZOOM AD-17): DC 5 V/1 A
Recharging times
By USB 2.0 port: about 4 hours and 30 minutes
By USB 3.0 port: about 3 hours
Using ZOOM AD-17: about 3 hours
Battery operation time :
4K/30: 1 hour and 20 minutes
1080/30: 2 hour and 30 minutes
Note: MOV mode, 48 kHz/24-bit, XYQ-8 connected, no XLR input, Power Saving enabled
External Dimensions
MAIN UNIT (when mic arm lowered) (D x W x H): 159 x 68 x 65 mm
MAIN UNIT (when mic arm raised) (D x W x H): 134 x 68 x 135 mm
MIC (D x W x H): 45 x 66 x 51 mm
Weight: 367 g (including battery)
