Description

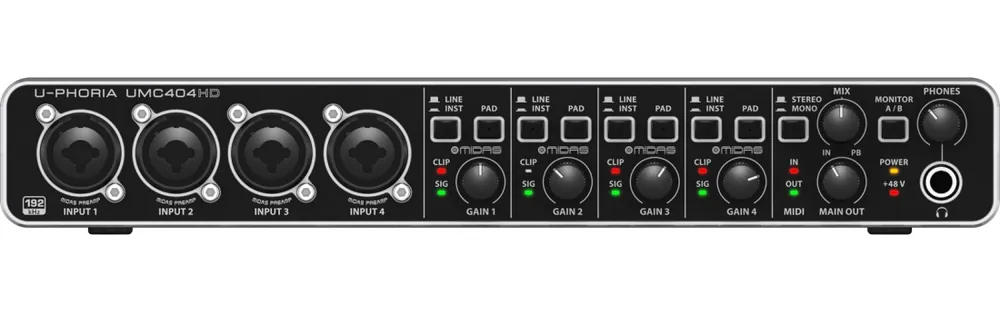

The U-PHORIA UMC404HD from Behringer is a powerful 4 input, 4 output USB 2.0 recording interface featuring genuine MIDAS-designed mic preamps with exceptional 24-Bit/192 kHz high-resolution converters, designed to help your recordings and mixes sound their absolute best. Powered from the USB bus, the cross platform interface includes zero-latency direct monitoring for recording, LED indicators for status, signal and clipping, and a dedicated headphone output with volume control and a monitor A/B source select for DJ-style cueing.
The U-PHORIA UMC404HD bridges the gap between your creativity and your fans. This blazingly fast USB 2.0 studio in a box will have you recording your next masterpiece in minutes with all the connectivity required for your microphones, guitars, keyboards and even MIDI devices. Record the perfect vocal right to your computer-based DAW thanks to the 4 astonishingly pure, world-class Midas-designed mic preamps, which include +48 Volt phantom power for condenser microphones, all going through studio-grade 24-Bit/192 kHz converters for the best possible sound quality. Whether you’re a singer-songwriter, producer on the go, or just need a rock-solid interface for running backing tracks at a gig, the ultra-dependable U-PHORIA UMC404HD will help you shine in the digital domain.
On the rear panel of the UMC404HD, you’ll find the USB 2.0 port for simple and easy connection to your computer, along with plenty of analog playback options including 1/4″ TRS, RCA and XLR. The UMC404HD also features 4 analog Inserts for use with external effects such as compressors, gates and EQs, etc. Built-in MIDI I/O allows you to connect keyboards and all your favorite outboard MIDI hardware.
Features:
4×4 USB 2.0 Audio/MIDI Interface for recording microphones and instruments
Audiophile 24-Bit/192 kHz resolution for professional audio quality
Compatible with popular recording software including Avid Pro Tools*, Ableton Live*, Steinberg Cubase*, etc.
Streams 4 inputs / 4 outputs plus 1x MIDI I/O with ultra-low latency to your computer, supporting Mac OS X and Windows XP or higher
4 state-of-the-art, MIDAS designed Mic Preamplifiers with +48 V phantom power
Analog Inserts for use of external effects such as compressors, etc.
Zero-latency direct monitoring while recording
Input/Playback Mix control and Stereo/Mono switch for direct monitoring
Powerful Phones output with Level control and Monitor A/B source select for DJ-style cueing
Status, Signal and Clip indications for perfect overview
Main Outputs on balanced XLR and 1/4″ TRS connectors
Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable at behringer.com
« Built-like-a-tank », impact-resistant metal chassis
Specs:
Input
Preamp: 4 x MIDAS design
Type: 4 x XLR/TRS combo connector (Mic/Line/Instrument)
Input level attenuation: 4 x Pad switch
Frequency response: 10 Hz – 50 kHz (0 / -3 dB)
Impedance: Mic in: 3k / Instrument in: 1 M
Max Input level: Mic: -4 dBu/Line: +20 dBu/Instrument: -3 dBU
Phantom power: +48V, switchable
Output
Type:
– 1 x 1/4″ stereo )Phones)
– 2 x 1/4″ TRS (Main Line Out)
– 2 x XLR (Main Line Out)
– 4 x 1/4″ TRS (Playback Line Out)
– 4 x RCA (Playback Line Out)
Frequency response: 10 Hz – 43 kHz (0 / + 0.3 dB)
Max. ouput level: +3 dBu
MIDI I/O
Type: 5-pin DIN; 1 in, 1 out
Digital Processing
Supported sample rates: 44.1/48/88.2/96/176.4/192 kHz
Computer Bus Connectivity
Type: USB 2.0, type B
Operating Systems
Mac OS x*, Windows XP or higher*
Drivers
Mac*: No driver required/CoreAudio supported
Windows*: Available as download from behringer.com
Power
Power Consumption: Max 2.5 W
Power supply: USB connector (bus-powered form computer) and adapter
Mains voltage: 100-250V~, 50/60 Hz
Dimensions (H x W x D): 45.81 x 292 x 130 mm (1.78 x 11.5 x 5.1″)
Weight: 1.2 kg (2.7 lbs)
*Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries. Windows and Windows XP are registered trademarks of Microsoft Corporation in the United States and other countries.
