Description

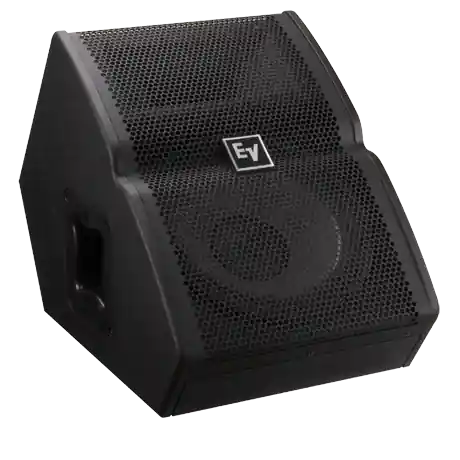

Electro-Voice’s Tour-X floor monitors are designed to complement all full-range cabinets in the family with common voicing.
Features:
Two-way, high-output design
Vented LF enclosure
Neutrik Speakon paralleled pass-through connectors
Two integrated handles
Ideal for small-to-medium stages
Signal Synchronized Transducers for woofer/tweeter alignment
Low-distortion SMX2121 woofer with fully symmetric drive
1.25-inch DH3/2010A titanium HF compression driver
Constant-directivity 90 deg H x 50 deg V horn
Integrated 24 dB/octave crossover with HF protection
99 dB sensitivity, 132 dB maximum SPL
Power handling: 500 W continuous, 2000 W peak
Black EVCoat finish
Specifications:
Color: Black
Input Connections: Parallel Neutrik NL4
Speaker Type: Full-range
Frequency Response (-3 dB): 70 – 20000 Hz
Frequency Response (-10 dB): 55 – 20000 Hz
Internal Crossover: Yes
Recommended High-Pass Frequency: 60 Hz
Sensitivity 1 W/1 m: 99 dB
Max. SPL/1m (calc): 132 dB
Coverage (Nominal -6 dB) H: 90 deg
Coverage (Nominal -6 dB) V: 50 deg
Rotatable Horn: No
System Power Handling (Continuous/Program/Peak): 500 Watts
LF Transducer: SMX2121
HF Transducer: DH3
Crossover Frequency: 1600 Hz
Nominal Impedance (Passive): 8
Minimum Impedance: 6.4
Enclosure Material: Plywood and MDF with EVCOAT
Flying: No
Height: 440 mm (17.32″)
Width: 364 mm (14.33″)
Depth: 573 mm (22.56″)
Weight Net: 19.8 kg (43.65 lbs)
