Description

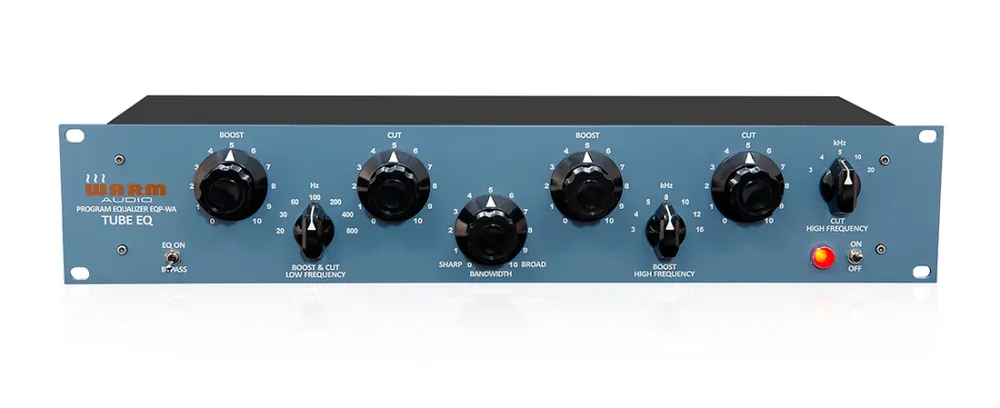

The EQP-WA is a re-creation of the most renown tube Equalizer in studio history, the « Pultec EQP-1A ». Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes. This fully discrete Tube EQ can pull euphoric sonics from any track and bring a brilliance and luster to mixes thats nearly impossible to achieve inside-the-box.
Specifications
Utilizes premium grade input and output
Tube Equalizer based on the classic Pultec EQP-1A
Premium high voltage 12AX7 and 12AU7 tubes
CineMag inductor EQ section
EQ section is bypassable – signal still passes through tubes and transformers for warming effect
No insertion loss – loss restored by tube amplifier
XLR and TRS transformer balanced inputs
XLR and TRS transformer balanced outputs
Flat frequency response from 20 Hz – 50 kHz
Boost and Cut controls can be used simultaneously for phase effect
Low frequency boost – 20, 30, 60, 100, 200, 400, 800 Hz – 12 db
Low frequency cut – 20, 30, 60, 100, 200, 400, 800 Hz – 18 db
High frequency boost – 3, 4, 5, 8, 10, 12, 16 kHz – 18 db
High frequency cut – 3, 4, 5, 10, 20 kHz – 14 db
5 added frequency points for greater flexibility
Switchable 115/230 volt IEC power inlet
Dimensions: 19 x 3.5 x 6 inches – 2RU rack mountable
